Yo! This project is still a Work In Progress. Instructions, board layouts and BOM might change!
5 Like
2 Collect
0 Comments
53 Download (1.44 MB)
Make a donation to jatel@jatel.skUMI6R2

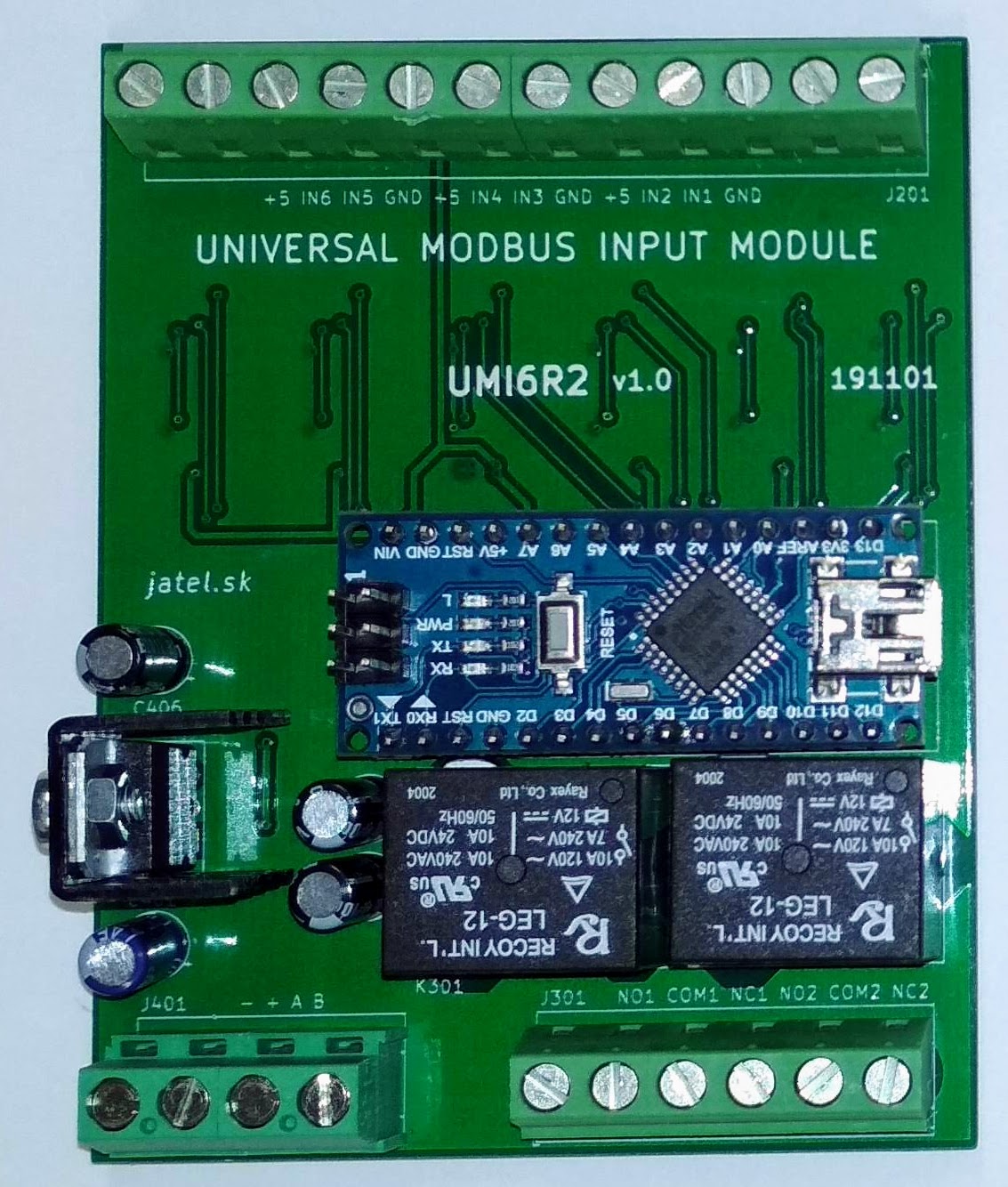

Universal modbus inputs module
jatel.sk
Specification:
Supply: 12 - 30V / 50mA
Core: Arduino Nano
Number of inputs: 6
Input types: TTL / TTL with pull-up 2k2 / 0-10V / 1-10V / 0-20mA / 4-20mA
Number of outputs: 2
Output types: relay contact 10A/240VAC
Communication: Modbus RTU 485
Mounting: DIN 4M
The firmware for this board is not yet available and therefore the board is not even tested!
I'm looking for a person to collaborate on writing an FW for the UMI6R2 board in the Arduino IDE.
Description
Low cost universal modbus controll unit for low cost sensors and actuators from China:
NTC
Hall Flow Sensor
DHT22
DS18B20
Pressure Sensor
Electric Valve
Electric Solenoid Valve
etc...
| Reference | Quantity | Value | Footprint | Datasheet |
|---|---|---|---|---|
| A401 | 1 | Arduino_Nano_v3.x | Module:Arduino_Nano | http://www.mouser.com/pdfdocs/Gravitech_Arduino_Nano3_0.pdf |
| C201 C202 C203 C213 C214 C215 | 6 | 100p | Capacitor_SMD:C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| C210 C204 C205 C211 C206 C207 C212 C208 C209 C222 C216 C217 C223 C218 C219 C224 C220 C221 C405 C402 C403 C408 C407 C404 | 24 | 100n | Capacitor_SMD:C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| C301 C302 C406 | 3 | 100u/16V | Capacitor_THT:CP_Radial_D5.0mm_P2.50mm | ~ |
| C401 | 1 | 47u/35V | Capacitor_THT:CP_Radial_D5.0mm_P2.50mm | ~ |
| D201 D202 D203 D204 D205 D206 | 6 | BZT52B5V6 | Diode_SMD:D_SOD-123 | https://diotec.com/request/datasheet/bzt52b2v4.pdf |
| D301 D302 | 2 | TS4148 | Diode_SMD:D_0805_2012Metric | |
| D401 | 1 | B140-E3 | Diode_SMD:D_SMA | https://www.vishay.com/docs/88946/b120.pdf |
| F201 F202 F203 F204 F205 F206 | 6 | SN005 | Resistor_SMD:R_1206_3216Metric_Pad1.42x1.75mm_HandSolder | ~ |
| J201 | 1 | INPUTS | TerminalBlock_Phoenix:TerminalBlock_Phoenix_MKDS-1,5-12-5.08_1x12_P5.08mm_Horizontal | ~ |
| J301 | 1 | OUTPUTS | TerminalBlock_Phoenix:TerminalBlock_Phoenix_MKDS-1,5-6-5.08_1x06_P5.08mm_Horizontal | ~ |
| J401 | 1 | Pwr | TerminalBlock_Phoenix:TerminalBlock_Phoenix_MKDS-1,5-4-5.08_1x04_P5.08mm_Horizontal | ~ |
| K301 K302 | 2 | LEG-12 | jt_relay:Relay_SPDT_RAYEX ELEC_LEG_Series_Form_1C | https://www.tme.eu/Document/311affc211749c2a4c93ad074af62b72... |
| Q301 Q302 | 2 | BC847 | Package_TO_SOT_SMD:SOT-23 | http://www.infineon.com/dgdl/Infineon-BC847SERIES_BC848SERIE... |
| R202 R201 R204 R203 R206 R205 R226 R225 R228 R227 R230 R229 | 12 | 100R | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R207 R210 R212 R215 R217 R220 R231 R234 R236 R239 R241 R244 R401 | 13 | 12k | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R209 R208 R214 R213 R219 R218 R233 R232 R238 R237 R243 R242 | 12 | 3k3 | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R211 R216 R221 R235 R240 R245 | 6 | 51R | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R222 R223 R224 R246 R247 R248 | 6 | 2R7 | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R303 R304 | 2 | 330R | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| R305 R301 R306 R302 | 4 | 4k7 | Resistor_SMD:R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | ~ |
| U201 U202 U203 U204 U205 U206 | 6 | 74HC4052 | Package_SO:SOIC-16_3.9x9.9mm_P1.27mm | https://www.ti.com/lit/ds/symlink/cd4052b.pdf |
| U401 | 1 | MAX485E | Package_SO:SOIC-8_3.9x4.9mm_P1.27mm | https://www.analog.com/media/en/technical-documentation/data... |
| U402 | 1 | LM7812_TO220 | Package_TO_SOT_THT:TO-220-3_Vertical | https://www.onsemi.com/?utm_source=domains&utm_medium=fairch... |
| U403 | 1 | 74HC595 | Package_SO:SOIC-16_3.9x9.9mm_P1.27mm | https://www.ti.com/lit/ds/symlink/sn74hc595.pdf |
| Name | Size | # Downloads |
|---|---|---|
| LICENSE.txt | 34.31 kB | 142 |
| inputs.sch | 53.07 kB | 232 |
| mcu.sch | 12.25 kB | 198 |
| osadzovak-bot.pdf | 63.28 kB | 158 |
| osadzovak-top.pdf | 12.91 kB | 145 |
| relay.sch | 9.1 kB | 246 |
| umi6r2-B_Cu.gbr | 645.15 kB | 189 |
| umi6r2-B_Mask.gbr | 263.28 kB | 178 |
| umi6r2-B_Paste.gbr | 323.57 kB | 165 |
| umi6r2-B_SilkS.gbr | 155.81 kB | 180 |
| umi6r2-Edge_Cuts.gbr | 3.1 kB | 206 |
| umi6r2-F_Cu.gbr | 175.01 kB | 203 |
| umi6r2-F_Mask.gbr | 67.12 kB | 171 |
| umi6r2-F_SilkS.gbr | 74.87 kB | 165 |
| umi6r2-NPTH-drl_map.gbr | 4.39 kB | 177 |
| umi6r2-PTH-drl_map.gbr | 48.94 kB | 149 |
| umi6r2-PTH.drl | 2.27 kB | 164 |
| umi6r2-cache.lib | 14.87 kB | 174 |
| umi6r2-rescue.dcm | 48 B | 227 |
| umi6r2-rescue.lib | 2.35 kB | 188 |
| umi6r2-sch.pdf | 142.24 kB | 211 |
| umi6r2.kicad_pcb | 684.22 kB | 211 |
| umi6r2.net | 69.18 kB | 172 |
| umi6r2.pro | 4.2 kB | 167 |
| umi6r2.sch | 719 B | 167 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 3 years ago | 2 | 68 × 87 |
