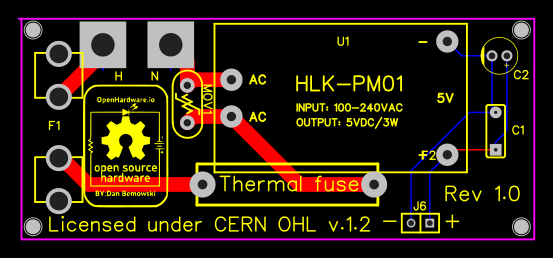

Make a donation to dbemowskThis power supply board is part of a multi board build to create a MySensors based scene controller/light switch that fits inside a standard US single gang wall switch/outlet box. The power supply is designed around the HI-LINK HLK-PM01 switching power supply module. It is designed to output 5 volts to power the controller board that mates up with a micro controller board through the use of a 3D printed board support.
This is a work in progress, so check back for revision changes.
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 1 | 5V | U1 | HLK-PM01 | 230V to 5V switching power supply | HI-LINK | HLK-PM01 | https://www.ebay.com/itm/HLK-PM01-AC-DC-220V-to-5V-Step-Down-Power-Supply-Module-Household-Switch-CZ/162240204406?hash=item25c6450e76:g:C~MAAOSwo4pYWiRx | |
| 1 | 1A | F1 | FUSE_5MM | 5mm x 20mm fast blow fuse | https://www.ebay.com/itm/Comp-Studio-LOT-OF-10-1A-250V-FUSES-F1AL250V-1-Amp-Fast-Blow-FUSE-5mm-x-20mm-C/272421893098?hash=item3f6d9c33ea:g:ZhsAAOSw4DJYfOI2 | |||
| 1 | 73℃ | F2 | THERMAL_FUSE_20MM | 73℃ thermal fuse | https://www.ebay.com/itm/20Pcs-Microtemp-Thermal-Fuse-73-TF-Cutoff-10A-250V-SF70E-NEC-/170923784620?hash=item27cbd9f9ac | |||
| 1 | 0.1uf016V5% | C1 | 0.1u Capacitor Ceramic | Ceramic disc capacitor or equivalent | https://www.ebay.com/itm/5-x-0-1uF-50V-Ceramic-Disc-Capacitor-New-USA-SELLER-Free-Ship-5pc-104-code/292278861640?hash=item440d2d7f48:g:CrMAAOSwLEtYj8cx | |||
| 1 | 10uf16v5% | C2 | 5mm Electrolytic Capacitor | Electrolytic capacitor | https://www.ebay.com/itm/Nichicon-UVZ-VZ-electrolytic-capacitor-10-uF-16V-5mm-x-11mm/162704432407?hash=item25e1f09d17:g:Rm4AAOSwhMFZ2lvp | |||
| 1 | CON_HEADER_1X02-PTH | J6 | M1X2 | 2.54mm male PCB header | https://www.ebay.com/itm/10PCS-1-40-40Pin-2-54mm-19mm-Long-single-row-Male-Breakable-Pin-Header-NEW/252228496433?hash=item3ab9fd6c31:g:s-EAAOSw~otWgJfs | |||
| 1 | 150V | D1 | MOVdoppia | 150V MOV varistor | http://www.ebay.com/itm/10-x-Zinc-Oxide-Varistor-150VAC-15J-1200A-7mm-FREE-SHIPPING-/321024843309?hash=item4abe925e2d | |||
| 2 | PCB TYPE FUSE CLIPS 1/4"Dia | LITTELFUSE | 122087 | https://www.ebay.com/itm/LITTELFUSE-122087-PCB-TYPE-FUSE-CLIPS-1-4-Dia-20-pcs/172391541090?hash=item2823562962:g:ZcAAAOSwkd5YFOwG |
