MdMs OEM2

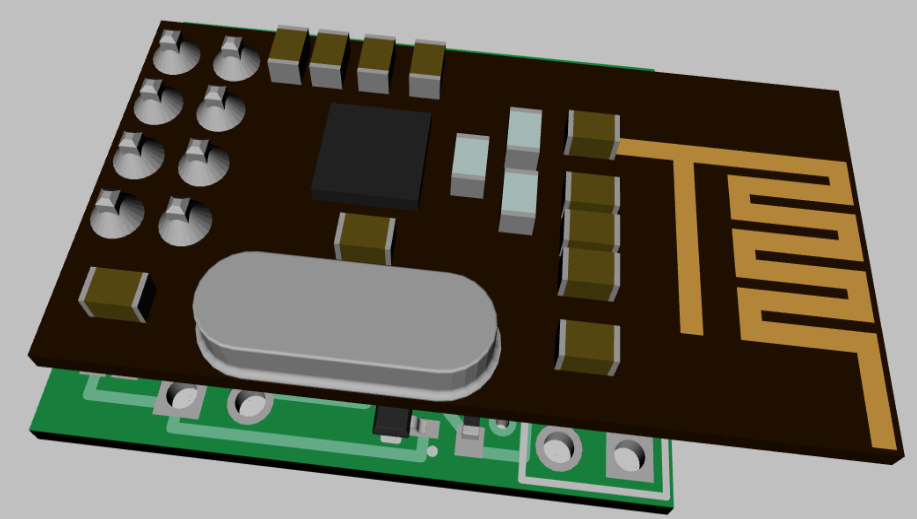

The board for small size sensors with sleep mode and uses only NRF24 radio.

The board contains:

Difference with "Sensebender Micro": Voltage gerulator and programming connector

RefDes	Value	Name	Pattern	Quantity
C1	0.1 uF	CAP_0603	CAP_0603	1
C2	1 uF	CAP_0603	CAP_0603	1
C3	0.1 uF	CAP_0603	CAP_0603	1
C4	100n	CAP_0603	CAP_0603	1
C5	10 uF	CAP_0603	TC_3528	1
I2C		CON2F	HDR-1x2T/2.54/5x2	1
PINS		CON3F	HDR-1x3T/2.54/7x2	1
PRG		DF4-8DP-2C	Prg connecter	1
R1	56k	RES_0603	RES_0603	1
R2	56k	R0603	RES_0603	1
R3	10k	RES_0603	RES_0603	1
R4	10k	RES_0603	RES_0603	1
R5	10k	RES_0603	RES_0603	1
R6	3.3k	RES_0603	RES_0603	1
R7	3.3k	RES_0603	RES_0603	1
RAW		CON2F	HDR-1x2T/2.54/5x2	1
U1		XC6206	SOT23	1
U2		ATSHA204	SOT23	1
U3		ATMEGA48_TQFP	QFP-32/9x9x0.8	1
U4		M25P40	SOIC-8/150mil	1
U5		NRF24	HDR-2x4T/2.54x2.54/10x5	1
U6		Si7021	DFN-6R/3x3x0.95	1
VCC		CON2F	HDR-1x2T/2.54/5x2	1
				23

Name	Size	# Downloads
MYSBootloaderV13pre.hex	5.54 kB	290
optiboot_atmega328_pro_8MHz.hex	1.4 kB	350
