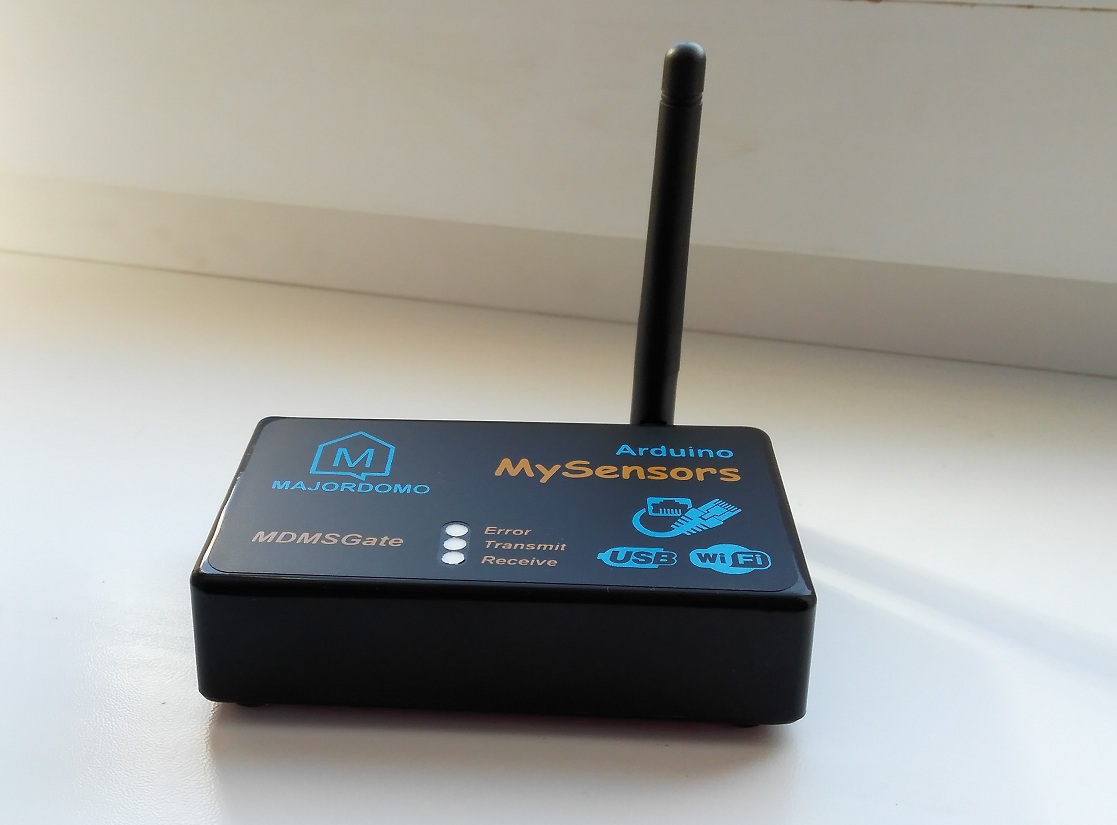

Make a donation to KalinaThis is MySensors gateway which is called MDMSGate. MDMSGate is designed for work with the MajorDomo project (https://www.mysensors.org/controller/majordomo). But you can also use it with yours own controller. MDMSGate can operates as a Serial, Ethernet or Wi-Fi gateway.
Feauters:
- Atmega328p microcontroller
- NRF24L01 with PA (2.4 GHz) radio module
- RFM69HW (433 or 868 or 915) radio module
- ESP12 Wi-Fi module
- PIC18F67J60 microcontroller with integrated MAC and 10BASE-T PHY (Microchip's TCP/IP Stacks)
- CP2102 chip for serial communication (USB to UART)
- ATSHA204A chip for signing
- M25P40 memory for DualOptiboot
- 3 leds (Rx,Tx,Status)
- two buttons (ESP12 FW update, inclusion mode)
- two SMA (2.4GHz or sub-GHz)
- micro USB (power and serial)
| Name | Size | # Downloads |
|---|---|---|
| MDMSGate.pdf | 672.31 kB | 1416 |
| MDMSGate.GBS | 19.1 kB | 1035 |
| MDMSGate.GTL | 108.98 kB | 1070 |
| MDMSGate.GTO | 839.23 kB | 1057 |
| MDMSGate.GTS | 20.43 kB | 1072 |
| MDMSGate-NonPlated.TXT | 199 B | 972 |
| MDMSGate-Plated.TXT | 3.15 kB | 988 |
| MDMSGate.GBL | 129.13 kB | 1073 |
| MDMSGate.GBO | 656.32 kB | 1055 |
| RF_Modules.SchDoc | 513.5 kB | 1204 |
| RS-485.SchDoc | 10.5 kB | 1066 |
| Ethernet.SchDoc | 262.5 kB | 1138 |
| Main.SchDoc | 10.5 kB | 1115 |
| MDMSGate.PcbDoc | 7.99 MB | 1250 |
| CHANGES.txt | 0 B | 1009 |
| PRODUCT.txt | 115 B | 924 |
| cern_ohl_v_1_2.txt | 8.94 kB | 888 |
| cern_ohl_v_1_2_howto.pdf | 55.06 kB | 625 |
| COPYRIGHT.txt | 426 B | 961 |
| MDMSGate. Connection to Domoticz.pdf | 1.22 MB | 1119 |
| MDMSGate. Manual for installing Wi-Fi.pdf | 1.73 MB | 1238 |
