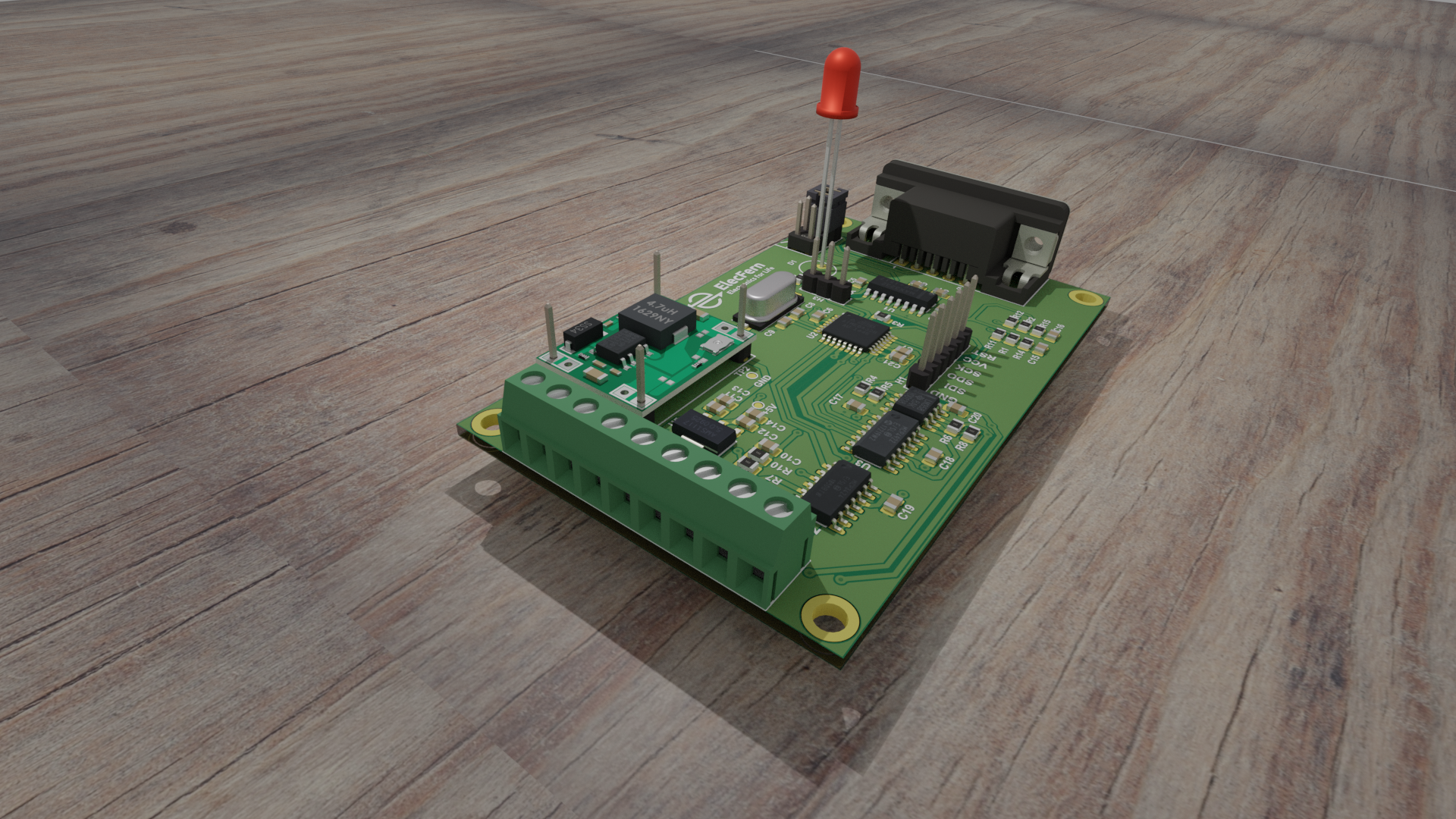

Make a donation to ElecfarmWelding machine is one of the most used tools in industry. This controller meets the control of a common welding machine through software from the controller with the lowest cost. Product includes professional library, confirmed schematic design. Our design has also a full output job and active Bill of Materials. Specifications
- Input voltage Range of 15V to 28V
- RS232 protocol support
- 2-channel digital potentiometer
- Current sensing
- 2-channel DAC voltage output
The design in Altium Designer files are from https://elecfern.com/product/arduino-based-serial-controller-for-welding-machine/ #Arduino #Controller #CircuitDesign #PCBDesign
| PartNumber | Manufacturer | Description | Category | Quantity | Unit | Packaging | Process Technology | Designator | NI Marking |
|---|---|---|---|---|---|---|---|---|---|
| GCJ21BL81H104KA01L | Murata Electronics | CAP-CER,100nF,0805,±10,50V,X5R | CAPACITOR | 17 | pcs | Tape and Reel | SM | C1, C2, C3, C4, C5, C6, C7, C10, C13, C14, C15, C16, C17, C18, C19, C20, C21 | |
| CC0805KRNPO9BN220 | YAGEO | CAP-CER,22pF,0805,±10%,50V,C0G | CAPACITOR | 2 | pcs | Tape and Reel | SM | C8, C9 | |
| C2012JB1E226M125AC | TDK Corporation | CAP-CER,22uF,0805,±20%,25V,JB | CAPACITOR | 2 | pcs | Tape and Reel | SM | C11, C12 | |
| L77SDE09SA4CH4R | Amphenol ICC (Commercial Products) | CONN-D-SUB,Receptacle, Female Sockets,Through Hole, Right Angle | CONNECTOR | 1 | pcs | Tray | TH | CN1 | |
| 691214310003 | Würth Elektronik | CONN-TERMINAL BLOCK,691214310003,16-24 AWG,300V,3.81mm | CONNECTOR | 3 | pcs | Bulk | DIP | CN2, CN3, CN4 | |
| QBL8R60D | QT Brightek (QTB) | LED-INDICATION,Red,Diffused,2.6V,20mA,Radial,Standard | LED | 1 | pcs | SM | D1 | ||
| PREC006SFAN-RC | Sullins Connector Solutions | HEADER-MALE,1x6,2.54mm,Tin,Straight | HEADER | 1 | pcs | Bulk | DIP | H1 | |
| PREC004DAAN-RC | Sullins Connector Solutions | HEADER-MALE,2x4,2.54mm,Tin,Straight | HEADER | 1 | pcs | Bulk | DIP | H2 | |
| PEC03SAAN | Sullins Connector Solutions | HEADER-MALE,1x3,2.54mm,Tin,Straight | HEADER | 1 | pcs | Bulk | DIP | H3 | |
| QPC02SXGN-RC | Sullins Connector Solutions | CONN-JUMPER,Female Sockets,2.54mm,Open Top | CONNECTOR | 2 | pcs | Bulk | ASSY | JP1, JP2 | |
| 106990005 | Seeed Technology Co., Ltd | MODULE-POWER,MP1584,4.5V-28V | MODULE | 1 | pcs | Bulk | TH | MD1 | |
| RMCF0805JT10K0 | Stackpole Electronics Inc | RES-SMD,10K,0805,±5%,1/8W | RESISTOR | 12 | pcs | Tape and Reel | SM | R1, R2, R3, R5, R7, R8, R9, R10, R11, R12, R14, R15 | |
| AC0805JR-0722KL | Yageo | RES-SMD,20K,0805,±5%,1/8W | RESISTOR | 2 | pcs | Tape and Reel | SM | R4, R6 | |
| RC0805JR-071KL | YAGEO | RES-SMD,1K,0805,±5%,1/8W | RESISTOR | 1 | pcs | Tape and Reel | SM | R13 | |
| MAX3232ID | Texas Instruments | IC-INTERFACE,Transceiver,RS232,14-SOIC (3.90mm) | IC | 1 | pcs | Rail/Tube | SM | U1 | |
| ATMEGA328P-AU | Microchip Technology | IC-MICROCONTROOLER,8-Bit,32KB,32-TQFP (7x7) | IC | 1 | pcs | Tray | SM | U2 | |
| MCP4922-E/SL | Microchip Technology | IC-DAC,12,2CH,Voltage,14-SOIC (3.90mm) | IC | 1 | pcs | Rail/Tube | SM | U3 | |
| LM358AM/NOPB | Texas Instruments | IC-AMPLIFIER, General Purpose, 3V-32V,1mA, SOIC-8 (3.9mm) | IC | 1 | pcs | Rail/Tube | SM | U4 | |
| LM1117MP-5.0/NOPB | Texas Instruments | IC-POWER,LDO,2.6V-15V,800mA,5V,SOT-223 | IC | 1 | pcs | Tape and Reel | SM | U5 | |
| MCP42010-E/SL | Microchip Technology | IC-DIGITAL POT,Potentiometer,10K,±20%,14-SOIC (3.90mm) | IC | 1 | pcs | Rail/Tube | SM | U6 | |
| 9C-8.000MBBK-T | TXC CORPORATION | CRYSTAL,25MHz,25ppm,12pF,40R,4-SMD, No Lead | CRYSTAL&OSCILLATOR | 1 | pcs | Tape & Reel | SM | X1 |
| Name | Size | # Downloads |
|---|---|---|
| FABRICATION_Welding Controller_2021-08-27-RoundHoles.TXT | 1.41 kB | 162 |
| FABRICATION_Welding Controller_2021-08-27-SlotHoles.TXT | 195 B | 158 |
| FABRICATION_Welding Controller_2021-08-27.DRL | 1.37 kB | 184 |
| FABRICATION_Welding Controller_2021-08-27.GBL | 101.84 kB | 142 |
| FABRICATION_Welding Controller_2021-08-27.GBO | 284 B | 159 |
| FABRICATION_Welding Controller_2021-08-27.GBP | 282 B | 136 |
| FABRICATION_Welding Controller_2021-08-27.GBS | 4.26 kB | 161 |
| FABRICATION_Welding Controller_2021-08-27.GKO | 422 B | 140 |
| FABRICATION_Welding Controller_2021-08-27.GTL | 235.37 kB | 138 |
| FABRICATION_Welding Controller_2021-08-27.GTO | 497.73 kB | 147 |
| FABRICATION_Welding Controller_2021-08-27.GTP | 8.71 kB | 151 |
| FABRICATION_Welding Controller_2021-08-27.GTS | 12.77 kB | 145 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 3 years ago | 2 | 84 × 50 |
