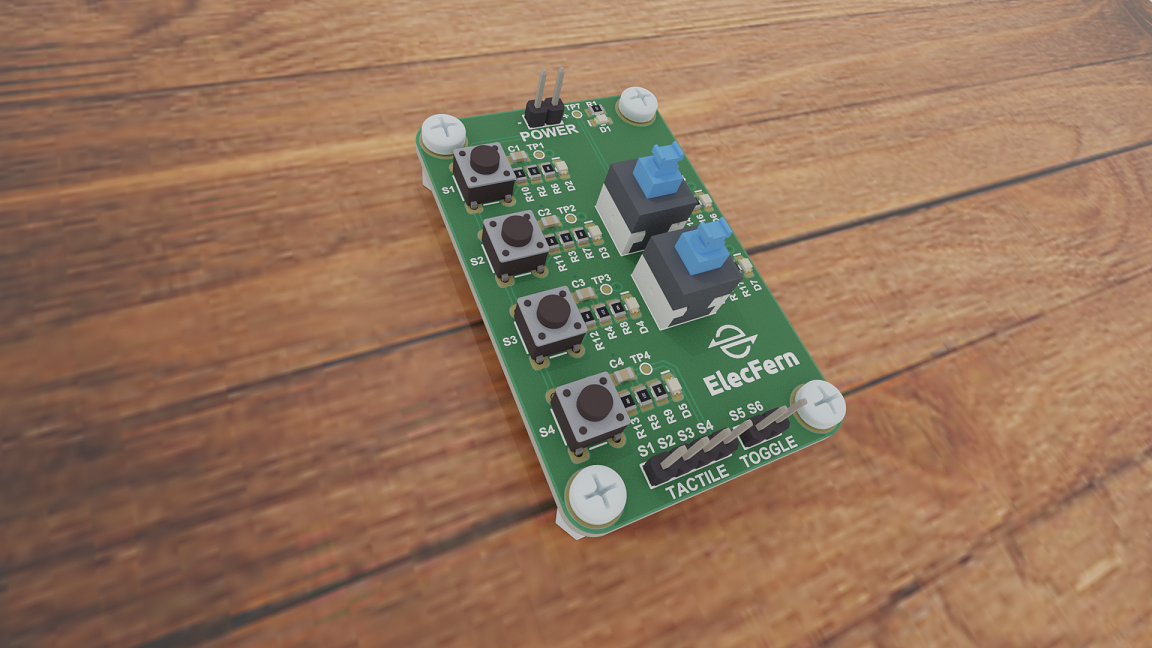

Make a donation to ElecfarmSwitch is used in many electronic products. It can be configured for devices as an input signal. Otherwise, tactile switches and pushbutton switches are usually used to debug and test function of circuits. This module has 5 tactile switches and 2 pushbutton switches including low pass filter for each output signal. Product includes professional library, confirmed schematic design. Our design has also a full output job and active Bill of Materials. Specifications
- Input voltage Range of 3.3V to 5.5V
- LED indication for each output signal
- Ready to use in your designs
The design in Altium Designer files are from https://elecfern.com/product/tactile-and-pushbutton-switches-module/
| PartNumber | Manufacturer | Description | Category | Quantity | Unit | Packaging | Process Technology | Designator | NI Marking |
|---|---|---|---|---|---|---|---|---|---|
| GCJ21BL81H104KA01L | Murata Electronics | CAP-CER,100nF,0805,±10,50V,X5R | CAPACITOR | 6 | pcs | Tape and Reel | SM | C1, C2, C3, C4, C5, C6 | |
| LTST-C171KRKT | Lite-On Inc. | LED-INDICATION,Red,Clear,2V,30mA,0805,Standard | LED | 1 | pcs | Tape and Reel | SM | D1 | |
| QTLP630C4TR | Everlight Electronics Co Ltd | LED-INDICATION,Green,2.1V,30mA,0805,Standard | LED | 6 | pcs | Tape and Reel | SM | D2, D3, D4, D5, D6, D7 | |
| PEC04SAAN | Sullins Connector Solutions | HEADER-MALE,1x4,2.54mm,Tin,Straight | HEADER | 1 | pcs | Bulk | DIP | H1 | |
| PEC02SAAN | Sullins Connector Solutions | HEADER-MALE,1x2,2.54mm,Tin,Straight | HEADER | 2 | pcs | Bulk | DIP | H2, H3 | |
| 97790503111 | Würth Elektronik | HARDWARE&FASTENER-BOLT,Nylon,M3,5mm | HARDWARE&FASTENER | 4 | pcs | ASSY | MP1, MP2, MP3, MP4 | ||
| 25508 | Keystone Electronics | HARDWARE&FASTENER-STANDOFF,Nylon,M3,Female-Female,6mm | HARDWARE&FASTENER | 4 | pcs | ASSY | MP5, MP6, MP7, MP8 | ||
| RC0805JR-071KL | YAGEO | RES-SMD,1K,0805,±5%,1/8W | RESISTOR | 13 | pcs | Tape and Reel | SM | R1, R6, R7, R8, R9, R10, R11, R12, R13, R16, R17, R18, R19 | |
| RC0805JR-07220RL | YAGEO | RES-SMD,220R,0805,±5%,1/8W | RESISTOR | 6 | pcs | Tape and Reel | SM | R2, R3, R4, R5, R14, R15 | |
| 1825910-6 | TE Connectivity ALCOSWITCH Switches | SWITCH-TACTILE,SPST-NO,0.05A @ 24VDC,PC Pin | SWITCH | 4 | pcs | Bulk | SM | S1, S2, S3, S4 | |
| TL2285EE | E-Switch | SWITCH-PUSHBUTTON,DPDT,0.1A @ 30VDC, PC Pin | SWITCH | 2 | pcs | Bulk | TH | S5, S6 |
| Name | Size | # Downloads |
|---|---|---|
| FABRICATION_SwitchModule_2021-08-26.DRL | 762 B | 114 |
| FABRICATION_SwitchModule_2021-08-26.GBL | 32.31 kB | 101 |
| FABRICATION_SwitchModule_2021-08-26.GBO | 284 B | 137 |
| FABRICATION_SwitchModule_2021-08-26.GBP | 282 B | 109 |
| FABRICATION_SwitchModule_2021-08-26.GBS | 2.43 kB | 124 |
| FABRICATION_SwitchModule_2021-08-26.GKO | 679 B | 116 |
| FABRICATION_SwitchModule_2021-08-26.GTL | 136.34 kB | 105 |
| FABRICATION_SwitchModule_2021-08-26.GTO | 388.93 kB | 124 |
| FABRICATION_SwitchModule_2021-08-26.GTP | 3.21 kB | 143 |
| FABRICATION_SwitchModule_2021-08-26.GTS | 5.53 kB | 121 |
| FABRICATION_SwitchModule_2021-08-26.TXT | 812 B | 101 |
