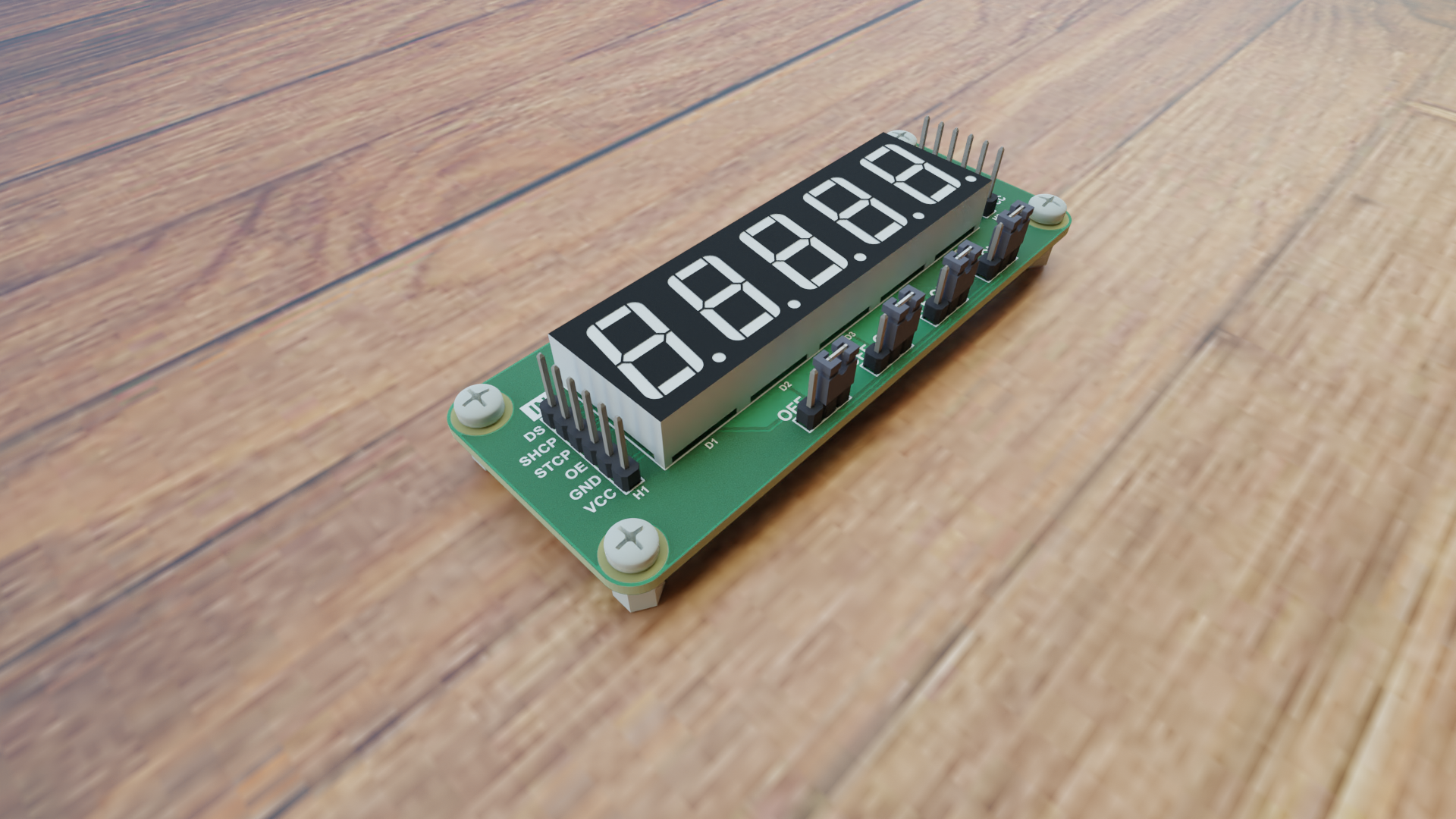

Make a donation to Elecfarm7-Segment LEDs Module Using Shift Register CD74HC595 The SN74HC595 devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Product includes professional library, confirmed schematic design. Our design has also a full output job and active Bill of Materials. Specifications
- Input voltage Range of 2V to 6V
- ON/OFF 7-Segment LEDs optional
- Extendable module with serial connection
- Ready to use in your devices
Visit my website elecfern.com
| PartNumber | Manufacturer | Description | Category | Quantity | Unit | Packaging | Process Technology | Designator | NI Marking |
|---|---|---|---|---|---|---|---|---|---|
| C0603C104K3RACTU | KEMET | CAP-CER,100nF,0603,±10,25V,X7R | CAPACITOR | 5 | pcs | Tape and Reel | SM | C1, C2, C3, C4, C5 | |
| SA56-11EWA | Kingbright | DIS-7SEG,Red,Common Anode,0.56",2V,30mA | DISPLAY MODULE | 5 | pcs | Rail/Tube | TH | D1, D2, D3, D4, D5 | |
| PREC006SFAN-RC | Sullins Connector Solutions | HEADER-MALE,1x6,2.54mm,Tin,Straight | HEADER | 2 | pcs | Bulk | DIP | H1, H2 | |
| PEC03SAAN | Sullins Connector Solutions | HEADER-MALE,1x3,2.54mm,Tin,Straight | HEADER | 4 | pcs | Bulk | DIP | H4, H5, H6, H7 | |
| QPC02SXGN-RC | Sullins Connector Solutions | CONN-JUMPER,Female Sockets,2.54mm,Open Top | CONNECTOR | 4 | pcs | Bulk | ASSY | JP1, JP2, JP3, JP4 | |
| 97790503111 | Würth Elektronik | HARDWARE&FASTENER-BOLT,Nylon,M3,5mm | HARDWARE&FASTENER | 4 | pcs | ASSY | MP1, MP2, MP3, MP4 | ||
| 25508 | Keystone Electronics | HARDWARE&FASTENER-STANDOFF,Nylon,M3,Female,Female | HARDWARE&FASTENER | 4 | pcs | ASSY | MP5, MP6, MP7, MP8 | ||
| RC0603JR-07220RL | Yageo | RES-SMD,220R,0603,±5%,1/10W | RESISTOR | 40 | pcs | Tape and Reel | SM | R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12, R13, R14, R15, R16, R17, R18, R19, R20, R21, R22, R23, R24, R25, R26, R27, R28, R29, R30, R31, R32, R33, R34, R35, R36, R37, R38, R39, R40 | |
| SN74HC595DT | Texas Instruments | IC-Logic - Shift Registers,Serial to Parallel, Serial,2V-6V,70mA,16-SOIC (3.90mm) | IC | 5 | pcs | Tape and Reel | SM | U1, U2, U3, U4, U5 |
| Name | Size | # Downloads |
|---|---|---|
| FABRICATION_LED numeric Display Module_2021-08-13.DRL | 1.77 kB | 221 |
| FABRICATION_LED numeric Display Module_2021-08-13.GBL | 221.42 kB | 207 |
| FABRICATION_LED numeric Display Module_2021-08-13.GBO | 508.92 kB | 215 |
| FABRICATION_LED numeric Display Module_2021-08-13.GBP | 5.31 kB | 214 |
| FABRICATION_LED numeric Display Module_2021-08-13.GBS | 8.33 kB | 238 |
| FABRICATION_LED numeric Display Module_2021-08-13.GKO | 675 B | 188 |
| FABRICATION_LED numeric Display Module_2021-08-13.GTL | 95.38 kB | 237 |
| FABRICATION_LED numeric Display Module_2021-08-13.GTO | 220.66 kB | 198 |
| FABRICATION_LED numeric Display Module_2021-08-13.GTP | 286 B | 204 |
| FABRICATION_LED numeric Display Module_2021-08-13.GTS | 3.12 kB | 237 |
| FABRICATION_LED numeric Display Module_2021-08-13.TXT | 1.91 kB | 195 |
| Status Report.Txt | 503 B | 185 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 4 years ago | 2 | 90 × 35 |
