MySX Relay 4 | OpenHardware.io - Enables Open Source Hardware Innovation

Qty	Value	Device	Package	Parts	Description
1		CONN_02REVERSE	KF-301-P2	J0	Multi connection point. Often used as Generic Header-pin footprint for 0.1 inch spaced/style header connections
2		CONN_03JST_1_SMD	JST03_1MM_RA	J5, J6	Multi connection point. Often used as Generic Header-pin footprint for 0.1 inch spaced/style header connections
4		CONN_03REVERSE	KF-301-P3	J1, J2, J3, J4	Multi connection point. Often used as Generic Header-pin footprint for 0.1 inch spaced/style header connections
5		LEDCHIPLED_0603	CHIPLED_0603	LED1, LED2, LED3, LED4, LED5	LED
1	0.1u	C-EUC1206K	C1206K	C2	CAPACITOR, European symbol
1	10u	C-EUC1206K	C1206K	C3	CAPACITOR, European symbol
5	1K	R-EU_R0603	R0603	R1, R2, R3, R4, R5	RESISTOR, European symbol
1	22u	C-EUC1206K	C1206K	C4	CAPACITOR, European symbol
1	230V/0.25A	19559	19559	FUSE	FUSE HOLDER
1	470u 16v	CPOL-EUE3.5-10	E3,5-10	C1	POLARIZED CAPACITOR, European symbol
1	AMS1117-3.3	V_REG_LD1117VXXLD1117-SMD	SOT223	IC2	LD1117VXX voltage regulator. We carry the 3.3V version (COM-00526) in TO-220 package.
1	HLK-PM01	HLK-PM01	HLK-PM01	U$1
1	MYSX-2.6PADS	MYSX-2.6PADS	MYSX-2.6-2X11_PADS	U$3	MYSX 2.6
1	QWIIC_RIGHT_ANGLE	QWIIC_CONNECTORJS-1MM	JST04_1MM_RA	J7	SparkFun I2C Standard Qwiic Connector
1	S05K300	S05K300	S05K300	VAR	VARISTOR
4	SRD-05VDC-SL-C	RELAYPTH	SRD-05VDC-SL-C	K1, K2, K3, K4	SPDT relay (COM-00101)
1	ULN2003AD	ULN2003AD	SO16	IC1	DRIVER ARRAY

Revision	Created	Layers	Dimensions
rev2	4 years ago	2	102 × 53
rev1	4 years ago	2	102 × 53

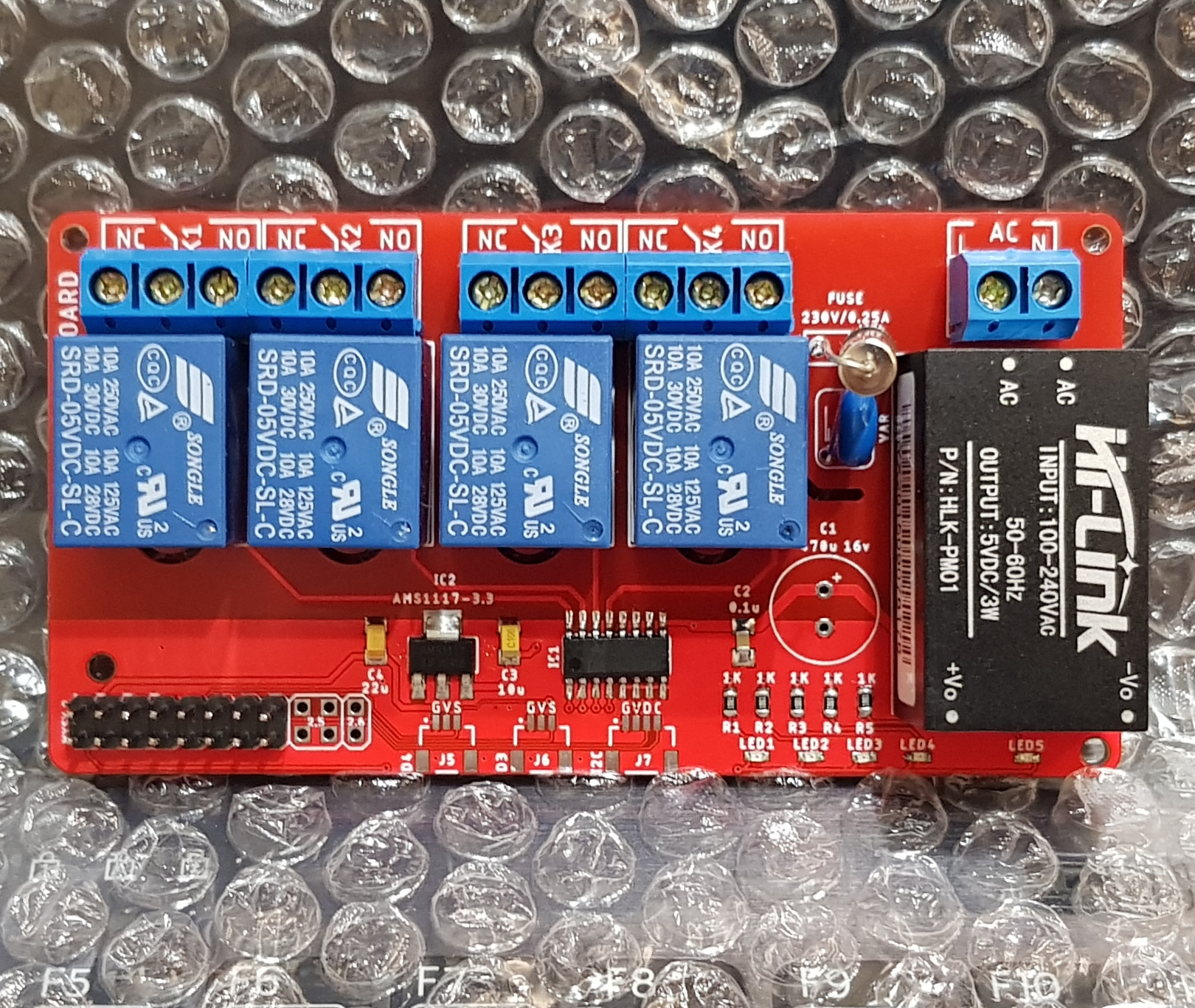

MYSX Relay Board
