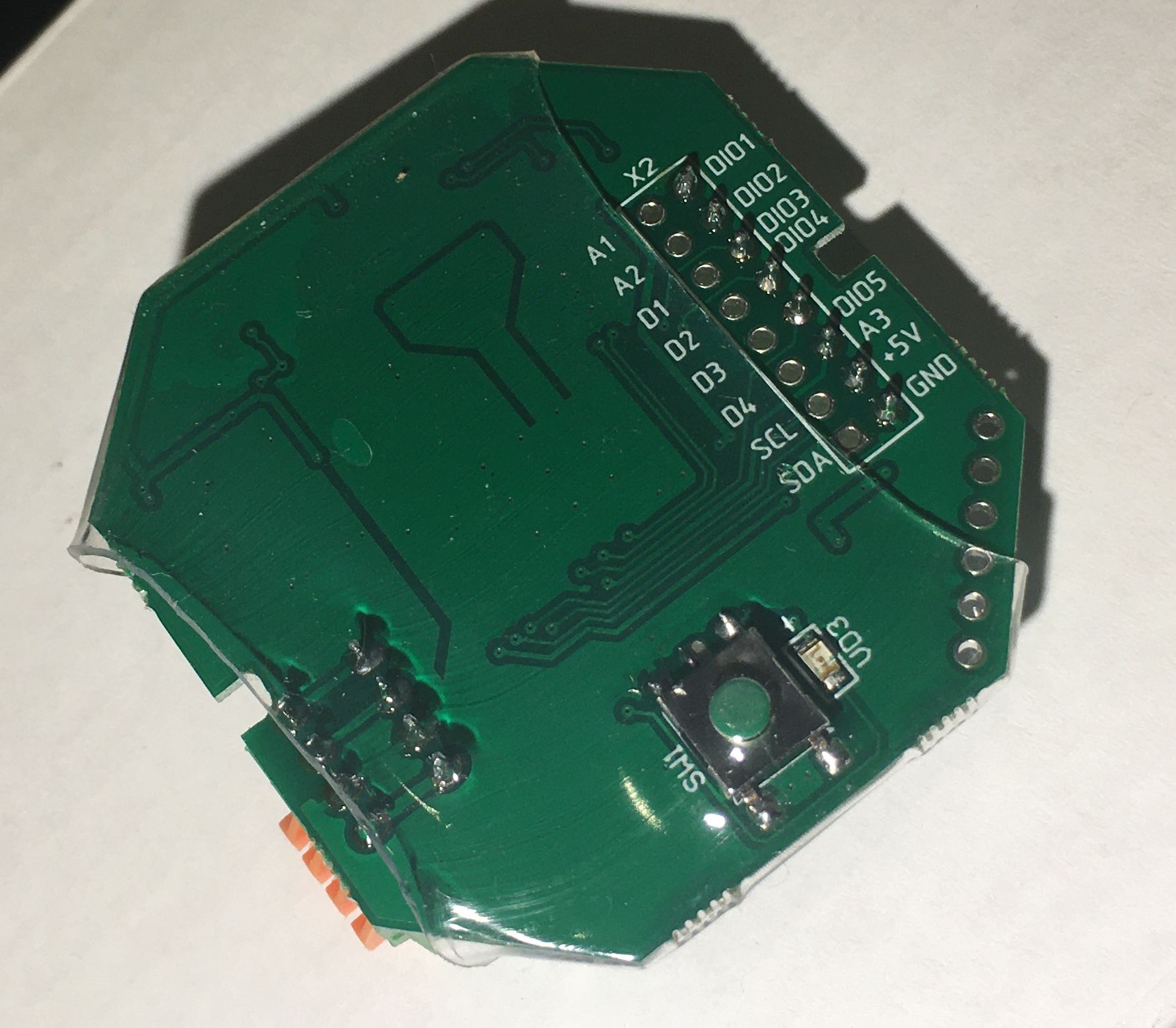

This module can be used in a standard European wall plate (60mm) to connect to a conventional light switch, blinds, water sensors, motion sensors, etc. at your discretion. Built on ATmega328, 8 MHz clock speed, RS-485 interface. Controls the relay module with RS-485 interface or using Gate 485 - > Ethernet / RF / WiFi
| Quantity | Designator | Value | Footprint | CHIPDIP P/N | CHIPDIP № |
|---|---|---|---|---|---|
| 2 | C9, C10 | 22pF | C0805 | MLCC22pFNPO50V5%0805 | 29844 |
| 10 | C1, C3, C4, C5, C7, C8, C11, C13, C14, C15, C16 | 0.1uF | C0805 | GRM219F51H104ZA01D | 33970 |
| 2 | C2, C6 | 1uF | C0805 | GRM21BR71C105KA01K | 443350645 |
| 1 | C12 | 10uF | C0805 | GRM21BR61A106KE19B | 579851680 |
| 1 | DA1 | LD1117S50CTR | SOT-223 | LD1117S50CTR | 9000093139 |
| 1 | DD1 | ATmega328P-AU | TQFP-32(7X7) | ATmega328P-AU | 9030000107 |
| 1 | DD2 | MAX13487EESA+ | SO8(6.60) | MAX13487EESA+ | 9000264616 |
| 2 | L1, L2 | BLM21BD222SN1L | L0805 | BLM21BD222SN1L | 8411462213 |
| 3 | R7, R8, R9 | 100 | R0805 | RC0805JR-07100RL | 481795709 |
| 3 | R6, R11, R12 | 510 | R0805 | RC0805JR-07510RL | 390453810 |
| 1 | R10 | 1k | R0805 | RC0805JR-071KL | 8001647558 |
| 2 | R3, R4 | 5.1k | R0805 | RC0805JR-075K1L | 847529526 |
| 5 | R1, R2, R5, R13, R14 | 10k | R0805 | RC0805JR-0710KL | 528580584 |
| 1 | RT1 | B72520-V 140-K62 | V1206 | B72520-V 140-K62 (CN1206K14G) | 552751243 |
| 1 | SW1 | FSM1LP | FSM1LP | 1-1437565-6 | 9000190851 |
| 2 | VD1, VD2 | SMAJ5.0A | SMA | SMAJ5.0A-TR | 9000442576 |
| 1 | VD3 | VD0805 | BL-LS0805PGC | 9000061661 | |
| 3 | VD6, VD7, VD8 | VD0805 | KP-2012EC | 3383 | |
| 1 | VD4 | SMA | S1M | 9000119182 | |
| 2 | VT1, VT2 | SOT-363 | BC847BS-7-F | 9000506126 | |
| 1 | X1 | DG141V-04P | DG141V-04P | DG141V-2.54-04P-14-00A(H) | 9000050411 |
| 1 | X2 | PBD-16 | PBD-16 | DS1023-2*8S21 | 25097 |
| 1 | XS1 | PLS-6 | PLS-6 | DS1021-1*6SF112-B | 9000363256 |
| 1 | ZQ1 | 8MHz | NX3225GD | NX3225GD-8MHz | 9000523940 |
| Name | Size | # Downloads |
|---|---|---|
| Modul1s.stl | 1.42 MB | 297 |
| ATmega_board_SB.PDF | 356.88 kB | 245 |
| ATmega_board_SH.pdf | 267.62 kB | 280 |
| ATmega_board.PcbDoc | 2.61 MB | 281 |
| ATmega_board.SchDoc | 697 kB | 301 |
| ATmega_board.TXT | 1.33 kB | 255 |
| ATmega_board.GBL | 21.14 kB | 237 |
| ATmega_board.GBO | 86.85 kB | 207 |
| ATmega_board.GM3 | 502 B | 253 |
| ATmega_board.GBS | 1.6 kB | 224 |
| ATmega_board.GTL | 25.07 kB | 256 |
| ATmega_board.GTO | 104.27 kB | 238 |
| ATmega_board.GTS | 7.41 kB | 250 |
| Status Report.Txt | 298 B | 225 |
