Scheme, Gerber file, case models, software are available on github - https://github.com/smartboxchannel/EFEKTA-LIS2DW12-MAX44009-E73C
Two sensors are used, max44009 light sensor (1 ua) and lis2dw accelerometer (1 ua).
Depending on which sensors are installed on the PCB, it can be used only as a light sensor, only as a shock sensor or both.

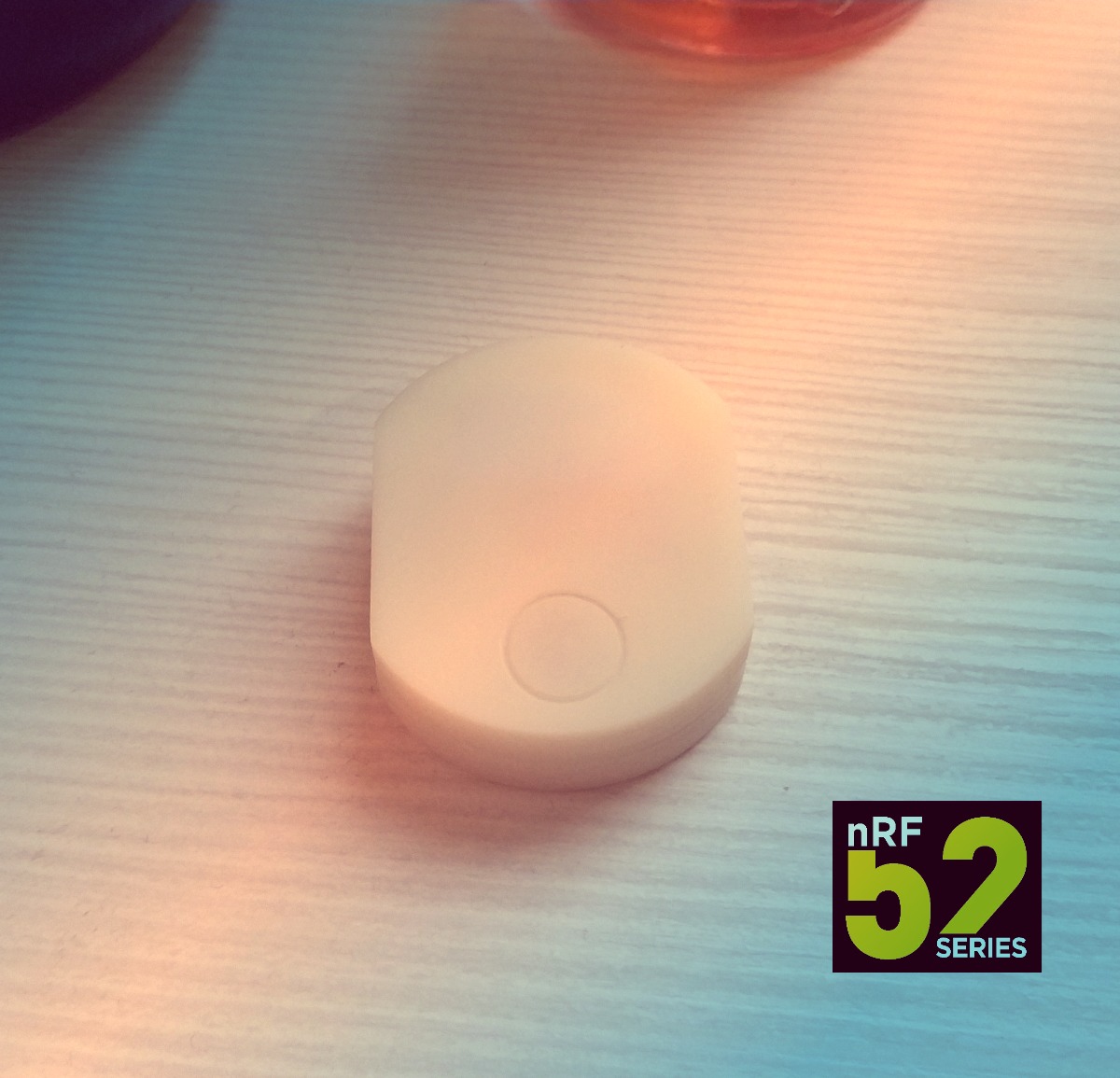

Powered by CR2032 battery.
In the test sketch implemented:
- The light sensor measures in Lux.
- The shock sensor has five levels of sensitivity.
- Two modes of operation: main (working) mode and command reception mode.
- The sensor accepts settings: the interval of sending data from the light sensor (in minutes), sending recalculated light data from Lux to watts per meter squared(on/off), the sensitivity level of the shock sensor(5 levels, 1 to 5)
- Depending on which sensors are installed on the PCB, it can be used only as a light sensor, only as a shock sensor or both.
Сomponents:
- nRF 52840 E73-2G4M08S1C
- FC-135 3215 3.2*1.5 32.768KHZ Resonator
- LIS2DW12\LIS2DH12
- MAX44009EDT
- RGB LED | SMD 0805 | RGBL | RGB LED
- Micro Button Tact Switch SMD 4Pin 3X4X2.5MM White
- BROWN Battery Button Cell Holder Socket Case
- 2x3P | 6pin | 1.27mm | SMT | Pin Header Female
SWD/Serial
Scheme, Gerber file, case models, software are available on github - https://github.com/smartboxchannel/EFEKTA-LIS2DW12-MAX44009-E73C
You can also buy a ready-made case - https://www.ebay.com/itm/202908554010
