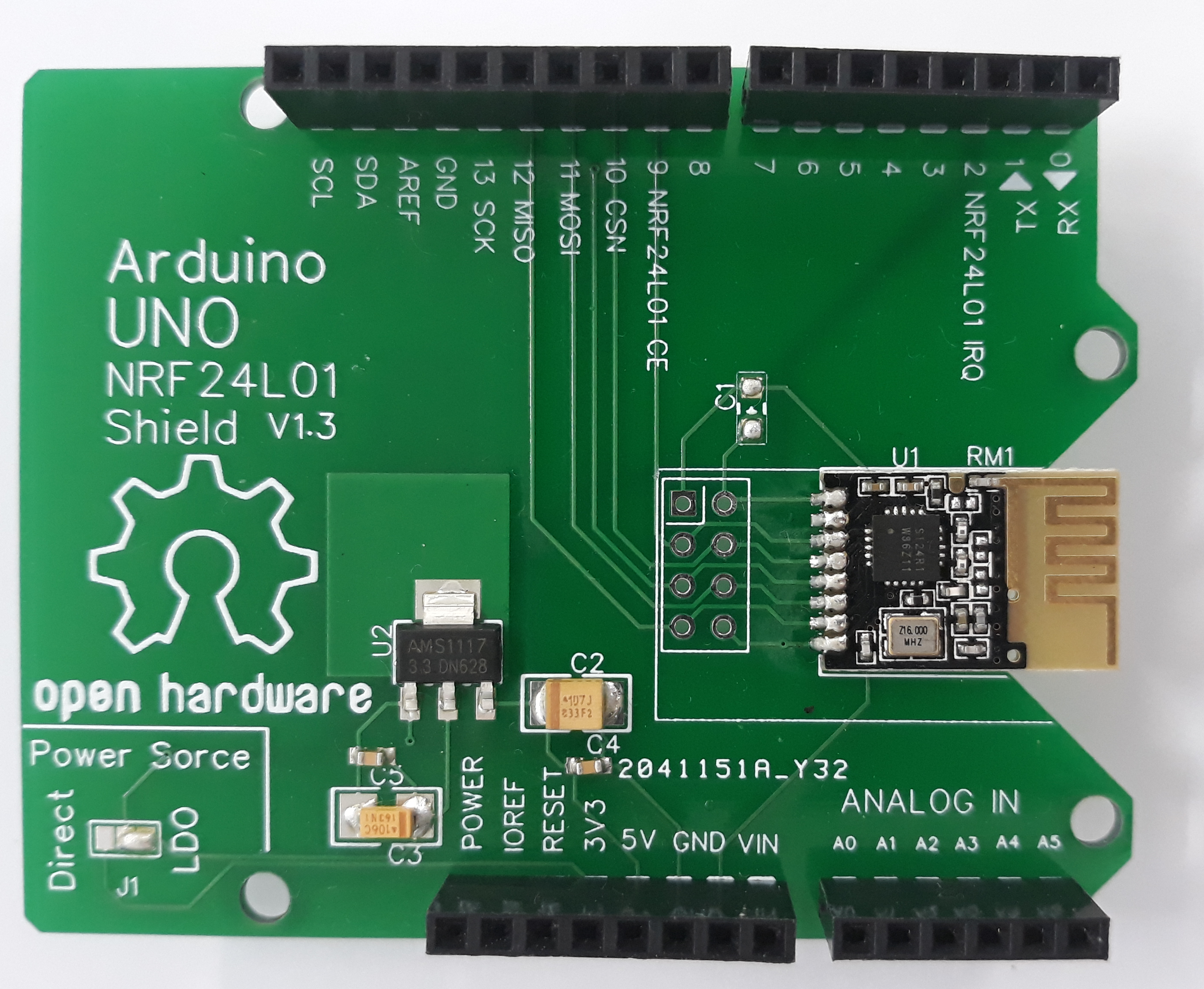

Arduino UNO NRF24L01+ Shield is specially design to add wireless connectivity to Arduino UNO.
This shield is design to make MySensors available to people with basic hardware knowledge and skills. Its saves time and avoid messy wiring connections.
Is easy to use just stack the shield on the top of the Arduino UNO connect NRF24L01+ to the shield upload MySensors code, that it. Known issues with the design:
The SMD pads for NRF24L01+ are not comparable for all NRF24L01+ modules. Different vendors have different pinout of this modules. Link for compatible SMD modules will be provided.
Be advised this shield cannot be used as MySensor Ethernet Gateway, the wiring are different. There exist other project for gateway. https://www.openhardware.io/view/695/Arduino-Uno-Radio-Shield-SerialEthernet-GW
The shield use this pins of the Arduino UNO:
Pin D2 NRF24L01 IRQ
Pin D9 NRF24L01 CE
Pin D10 CSN
Pin D11 MOSI
Pin D12 MISO
Pin D13 SCK
The Pins D10 to D13 is 4wire SPI interface. On the theory those pins can be used to connect another SPI device on the interface, i never test more than one device on the SPI line.
Pin D2 is IRQ is a Interrupt Request Line to the micro-controller.
Pin D9 is Chip Enable for the NRF24L01 Module.
Pins D2 and D9 cannot be used for other devices and sensors.
Power supply to NFR24 Module The board have integrated 3,3V voltage regulator. To provide best power supply to radio module. However there have a "solder jumper" which allow you to select the power source: Position LDO provide the power for the radio from shield voltage regulator Position Direct provide power from the Arduino 3,3V Rail By default the jumper is set to LDO
Attention solder all 3 pads on the jumper may destroy your Arduino and all connected devices.
Related Projects: https://www.openhardware.io/view/636/Raspberry-PI-Hat https://www.openhardware.io/view/694/Arduino-UNO-NRF24L01-Shield
Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
---|---|---|---|---|---|---|---|---|
1 | NRF UNO PCB | |||||||
1 | 10uF Tantalum | |||||||
1 | 100uF 6.3V Tantalum Case-B | |||||||
2 | 100nF 0.1uF X7R 0603 | |||||||
1 | AMS1117 3,3V SOT-223 | |||||||
1 | Header Tail 10p 2.54 | |||||||
1 | Header Tail 6p 2.54 | |||||||
2 | Header Tail 8p 2.54 | |||||||
1 | 47uF Tantalum Type-A |
Name | Size | # Downloads |
---|---|---|
Schematic_NRF24 UNO_Sheet_1_20191105083738.pdf | 47.15 kB | 215 |
Gerber_BoardOutline.GKO | 734 B | 255 |
Gerber_BottomLayer.GBL | 1.67 kB | 258 |
Gerber_BottomSolderMaskLayer.GBS | 2.89 kB | 272 |
Gerber_Drill_NPTH.DRL | 308 B | 282 |
Gerber_Drill_PTH.DRL | 1.21 kB | 268 |
Gerber_TopLayer.GTL | 4.7 kB | 290 |
Gerber_TopPasteMaskLayer.GTP | 1.12 kB | 250 |
Gerber_TopSilkLayer.GTO | 117.53 kB | 235 |
Gerber_TopSolderMaskLayer.GTS | 5.28 kB | 265 |
How-to-order-PCB.txt | 79 B | 244 |
