the learning cube for arduino is a helping hand for soft level entry into the fantastic world of (arduino) microcontroller - an easy starting point, away from breadboard confusions ("where do i have to put...?") - assemble, plug it over usb to your computer and start immediately programing
features:
interfacing:
remarks:
pin assignment:
A0 = DHT11

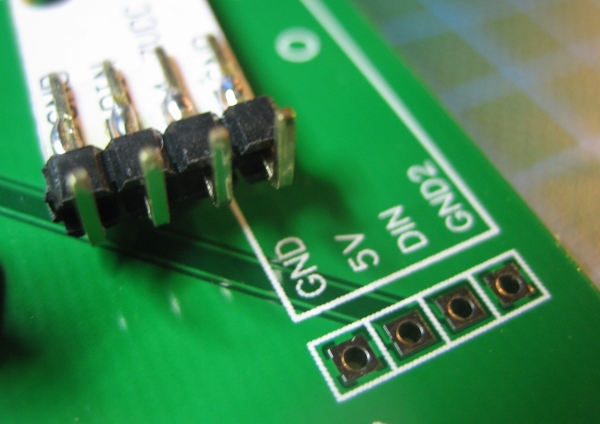

A1 = WS2812b
A2 = TL1838
A3 = not connected

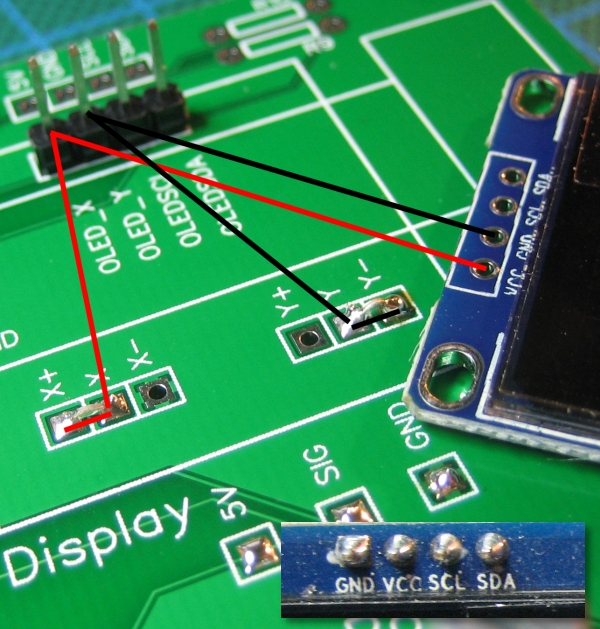

A4 = SDA
A5 = SCL
A6 = Poti
A7 = LDR
D2 = Switch

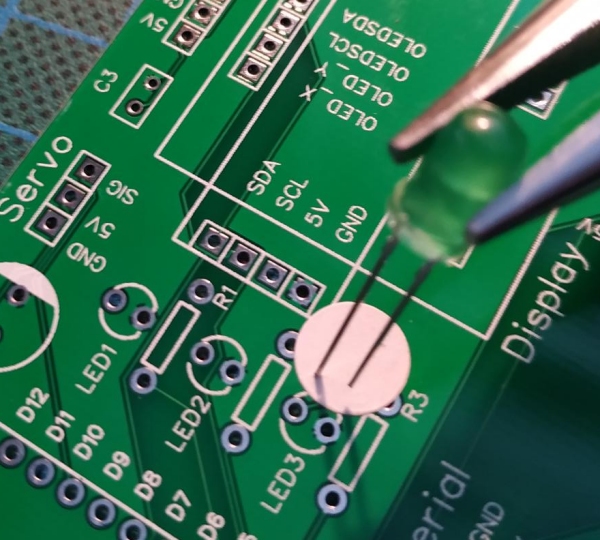

D3 = LED3 (green)
D4 = LED2 (orange)
D5 = LED1 (red)

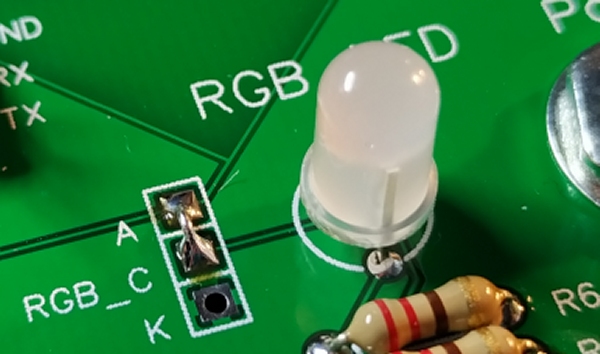

D6 = RGB LED (red)
D7 = RGB LED (green)
D8 = RGB LED (blue)
D9 = Buzzer

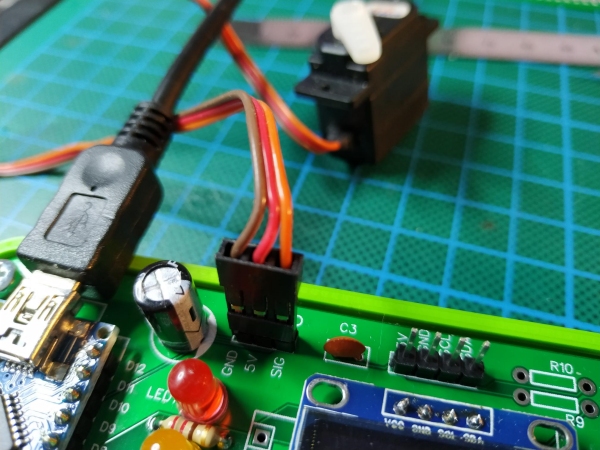

D10 = Servo
D11 = not connected
D12 = not connected
D13 = internal LED
Open Source Hardware
this project was developed for the purpose of teaching and education as Open Source Hardware under:
Creative Commons, Attribution-ShareAlike 4.0 International (CC BY-SA 4.0)
Arduino IDE
great sources for arduino sketches & projects:
the circuit design and pcb source is published here:
com driver (CH340G):
**links to pcb manufactors: **
video for the first connect/start:
Name | Size | # Downloads |
---|---|---|
Gerber_BoardOutline.GKO | 701 B | 563 |
Gerber_BottomSolderMaskLayer.GBS | 2.95 kB | 470 |
Gerber_Drill_NPTH.DRL | 302 B | 488 |
Gerber_BottomLayer.GBL | 586.82 kB | 556 |
Gerber_Drill_PTH.DRL | 2.47 kB | 482 |
Gerber_TopSilkLayer.GTO | 210.2 kB | 524 |
Gerber_TopSolderMaskLayer.GTS | 2.95 kB | 485 |
Gerber_TopLayer.GTL | 594.08 kB | 527 |
How-to-order-PCB.txt | 79 B | 426 |
PCB_arduino-learning-cube-pcb_1.pdf | 81.37 kB | 418 |
PCB_arduino-learning-cube-pcb_2.pdf | 32.51 kB | 332 |
Schematic_arduino-learning-cube.pdf | 58.76 kB | 400 |

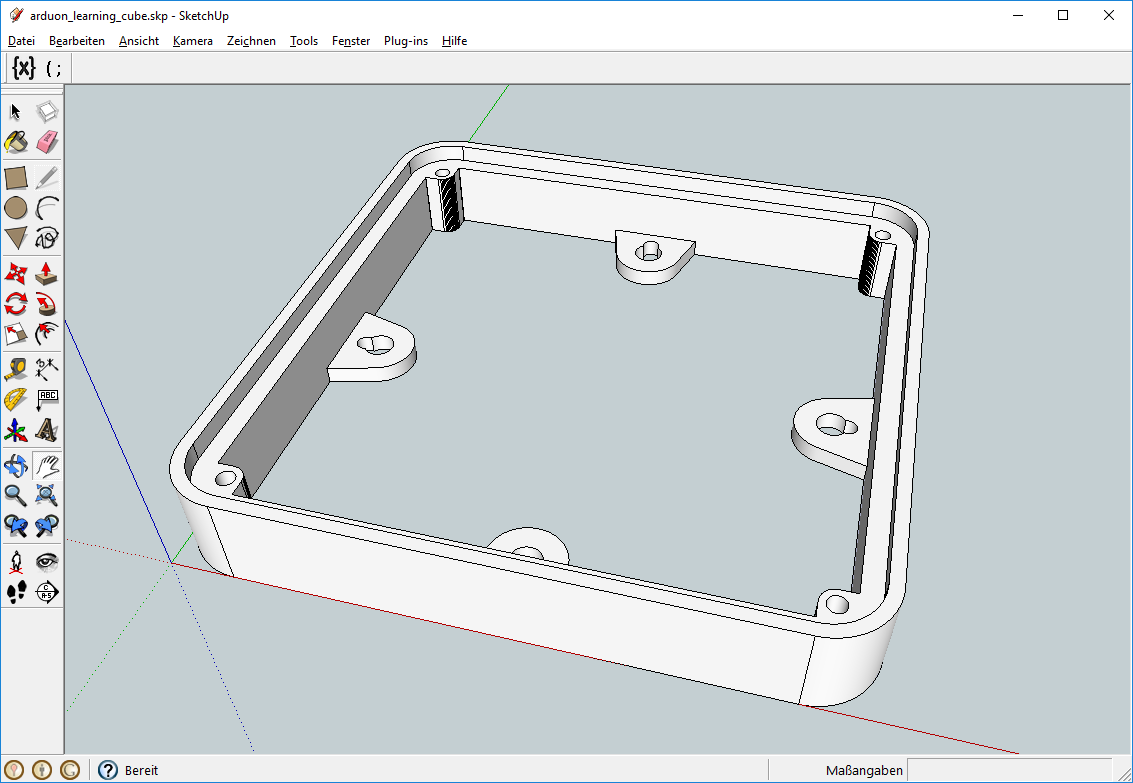

arduino_learning_cube.skp | 233.75 kB | 601 |
arduino_learning_cube.stl | 191.68 kB | 664 |
arduino_learning_cube_pin_assignment.txt | 366 B | 430 |

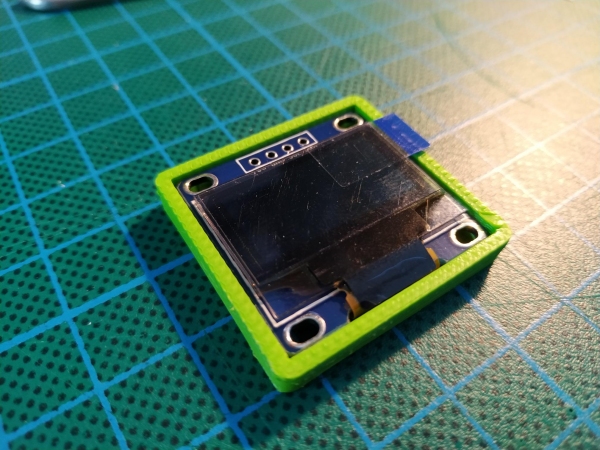

display_frame.skp | 21.98 kB | 485 |
display_frame.stl | 84 B | 587 |
