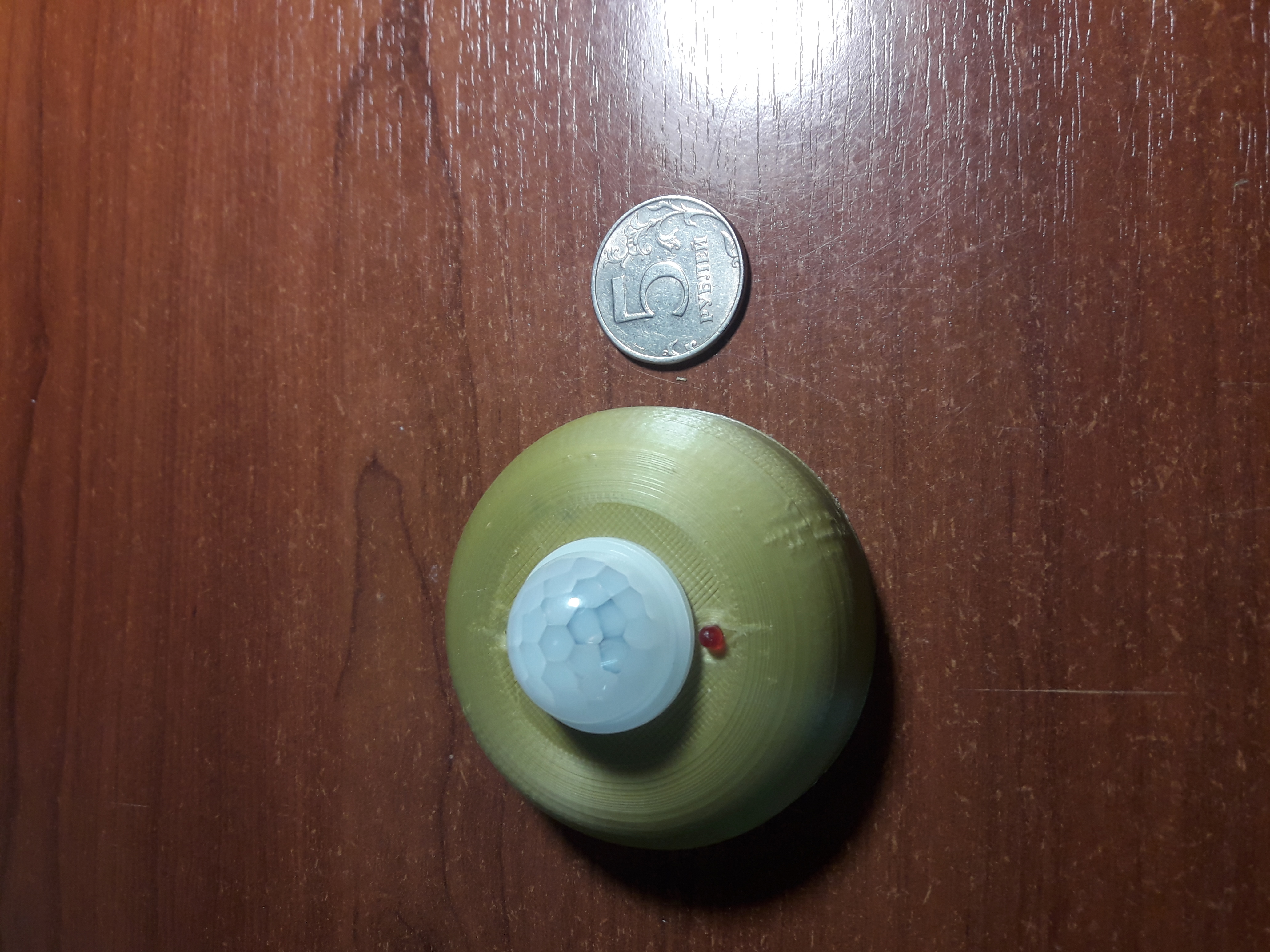

MDMSMotion
MajorDomo MySensor motion sensor
Technical Specification
Arduino IDE 1.6.x compatible
Internal power supply 1x AAA
ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support
SMD radio module NRF24
Humidity sensor and temp sensor SHT20
Light meter BH1750
Motion sensor AM612
Reset button
Inclusion button
Name
Size
# Downloads
cover batt.STL
14.93 kB
356
motion_sensors.dch
235.63 kB
379
