MSMDSoil-moisture-meter
MajorDomo MySensor Soil-moisture-meter
Technical Specification
Arduino IDE 1.6.x compatible
Internal power supply 1x AAA
ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support
SMD radio module NRF24

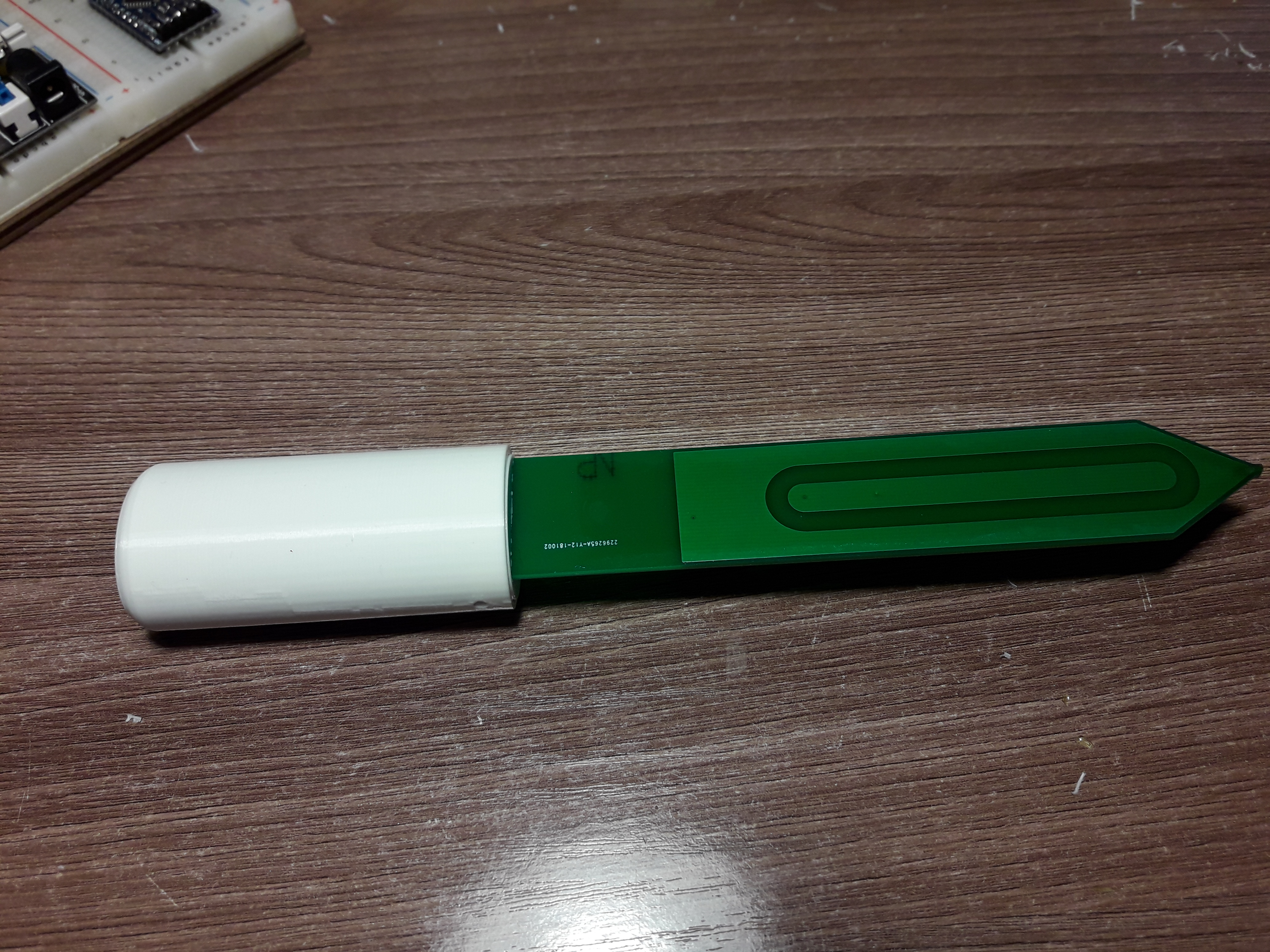

Humidity sensor made in the form of two plates on the PCB
Micro USB formfactor program connector UART
Reset button
Inclusion button
Name
Size
# Downloads
cover.STL
68.34 kB
256
housing.STL
180.75 kB
263
Hum_sensors.dch
120.69 kB
377
Name
Size
# Downloads
H_sensors_test-25-5.ino
4.22 kB
479
