MSMDSmokeWithMotion
by Serg2055
Homepage:
https://github.com/Serg2055/MSMDSmokeWithMotion
GitHub:
/Serg2055/MSMDSmokeWithMotion
License:
Attribution-ShareAlike (CC-BY-SA)
Created:
Updated:
Views:
2709
5
Like
2
Collect
0
Comments
Share
37
Download
(28.1 MB)
Donate to support Open Hardware
Description
Design Files
Source Code
Comments
MSMDSmokeWithMotion

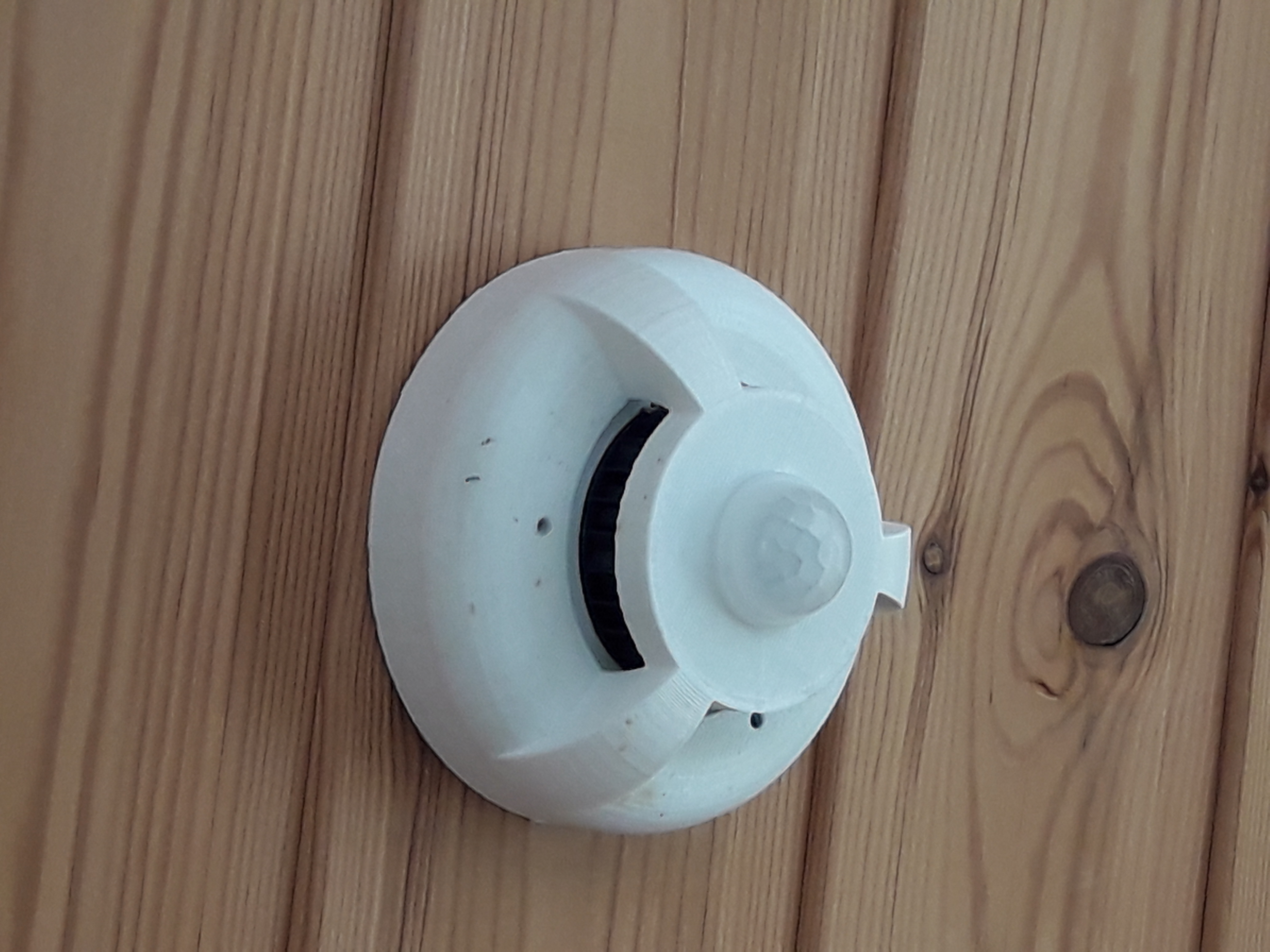

MajorDomo MySensor Smoke & Motion sensor
Technical Specification
Arduino IDE 1.6.x compatible
Internal power supply 2x AAA
ATSHA204A on board (connected to A3). Used for HMAC-SHA256 message authentication support
SMD radio module NRF24
Motion sensor (AM612)
Smoke sensor (Led smoke camera)
Light sensor (BH1750)
Humidity and Temperature Sensor (SHT20)
Micro USB formfactor program connector UART
Reset button
Inclusion button
