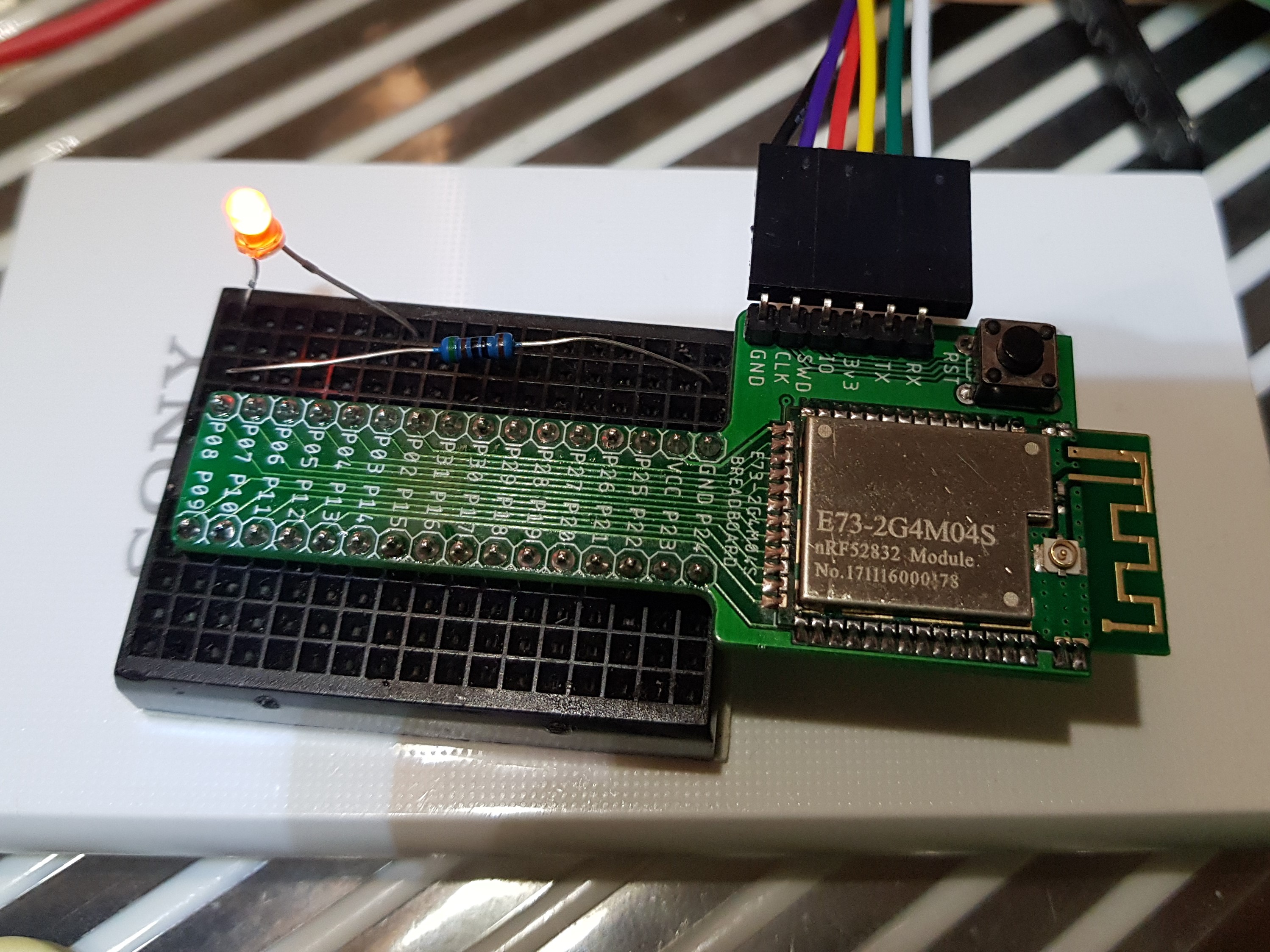

E73-2G4M04S BREADBOARD

Homepage:

https://github.com/KooLru/E73-2G4M04S-BREADBOARD/

License:

Attribution-ShareAlike (CC-BY-SA)

Created:

Updated:

Views:

3980

5 Like

0 Collect

0 Comments

31 Download (2.01 MB)

Make a donation to KooLru

Qty	Value	Device	Package	Parts	Description	MF	MPN
2	1X16	1X16	1X16	X1,X2	Pin header	Connfly	DS1021-1*16SF11-B
1	1X6	1X6	1X6	X3	Pin header	Connfly	DS1022-1*6RDF11-B
1	Switch	6x6x6mm		S1	6x6x6mm 4PIN micro switch	KLS	L-KLS7-TS6601-4.3-180

Revision	Created	Layers	Dimensions
rev3	5 years ago	2	28 × 69
rev2	5 years ago	2	28 × 69
rev1	5 years ago	2	28 × 69
