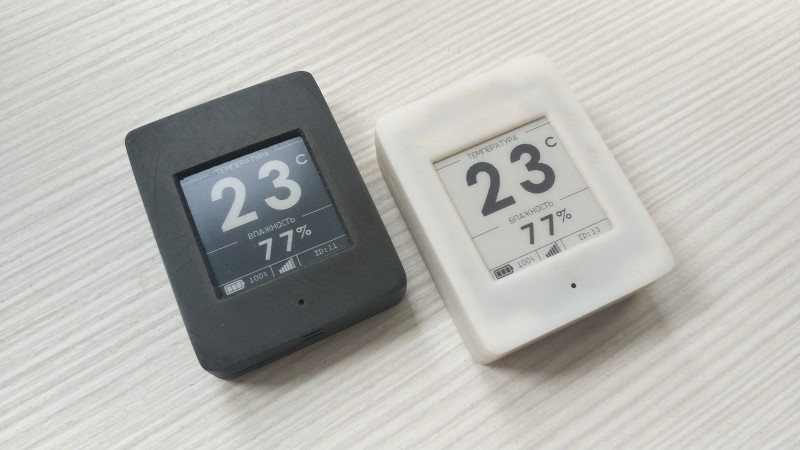

Donate to support Open HardwareMy new development: a mini temperature and humidity (& pressure) sensor with an electronic ink display(tested on nRF52810, nRF52811, nRF52832, nRF52840)). Very low power consumption! The device is ready.
- nRF52810, nRF52811, nRF52832, nRF52840
- SHT20, SHT21, SI7020, Si7021, HTU21D, BME280
- 1.54 e-paper display
- LED SIDE 1206
- Combo interface 6P SWD Serial (micro, 3х2/1,27)
- Step down converter (optional)
- One or Two battery CR2430, CR2450 or CR2477
- Two side buttons (first button-reset, the second button - mode.
Configuring the device without having to edit the code, Inverting the display color without restarting. multi-language interface. Very low consumption.
Not a bad device to start learning nRF52 and e-paper
My other similar projects:
Mini weather station with e-ink 2.9 Inch
V4 Temp&Hum&Press sensor with E-Ink 1.54
Mini Temp&Hum sensor with E-Ink 1.02
...I hope this development will deserve your like
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| ID | Name | Designator | Footprint | Quantity | URL | |||
| 1 | GDEW0102T4 EINK1.54 | 1 | https://ali.ski/0pJURr | |||||
| 2 | GDEW0102T4 EINK1.54 | 1 | https://ali.ski/tIZry | |||||
| 3 | GDEW0102T4 EINK1.54 | 1 | AliExpress: Square Eink Display 1.54 Inch Epaper With 200x20... | |||||
| 4 | MS50SFA (nRF52810/811) | U7 | WIRELM-SMD_MS50SFA | 1 | https://ali.ski/8ya0Ob | |||
| 5 | MS50SFA (nRF52811/832) | U7 | WIRELM-SMD_MS50SFA | 1 | https://ali.ski/gBDdnL | |||
| 6 | E73-2G4M08S1C | U7 | WIRELM-SMD_E73-2G4M08S1C | 1 | https://ali.ski/ElGPh | |||
| 7 | E73-2G4M08S1C | U7 | WIRELM-SMD_E73-2G4M08S1C | 1 | https://lite.al/qu4rE | |||
| 8 | 4.7uF | C1,C12 | C0805 | 2 | https://ali.ski/7K6tZq | |||
| 9 | 1uF (C2,C8 for V1 only) | C3,C4,C5,C6,C7,C9,C10,C11,C2,C8 | C0603 | 10 | https://lite.al/vsbI7N | |||
| 10 | 100uF (if no SD Conv.) | C13 | TANTAL 10V | 1 | https://lite.al/mctVY | |||
| 11 | 0.1uF | C14,C15,C16,C19 | C0603 | 5 | https://lite.al/eZrPr | |||
| 12 | 22pF | C17,C18 | C0604 | 2 | https://lite.al/eZrPr | |||
| 13 | SW-3×3_SMD | KEY1,KEY2 | 2 | https://lite.al/-qSRe | ||||
| 14 | 68uH or 100uH(V2) | L1 | D54 | 1 | https://lite.al/0V7Y2d | |||
| 15 | 3R0 | R1 | R0603 | 1 | https://lite.al/wJH_j | |||
| 16 | 10K | R2,R3,R4,R8 | R0603 | 4 | https://lite.al/wJH_j | |||
| 17 | 3K | R7 | R0603 | 1 | https://lite.al/wJH_j | |||
| 18 | 5K | R9 | R0603 | 1 | https://lite.al/wJH_j | |||
| 19 | RGB SIDE LED | RGB | 1204 RGB | 1 | https://lite.bz/8izkIX | |||
| 20 | MBR0530 | D1,D2,D3 | SOD-123 | 3 | https://lite.bz/aHLSRs | |||
| 21 | FPC24 | U4 | FPC24 | 1 | https://lite.bz/tnF--R | |||
| 22 | Si1304BD | U5 | SOT 323 | 1 | https://lite.al/apKJjP | |||
| 23 | SHT20 | U1 | 1 | https://lite.bz/tGegZ | ||||
| 24 | Si7021 | U1 | 1 | https://lite.al/YWJ3c | ||||
| 25 | HTU21D | U1 | 1 | https://lite.bz/Qm9t30 | ||||
| 26 | BME280 | U1 | 1 | https://lite.bz/FpaFS | ||||
| 27 | FC-135 | U10 | 3215 | 1 | https://lite.bz/DzxDDm |
| Name | Size | # Downloads |
|---|---|---|
| Schematic_154v3B.pdf | 39.53 kB | 194 |
| Schematic_154v3T_A.pdf | 123.14 kB | 224 |
| Schematic_154v3T_B_plus.pdf | 108.34 kB | 211 |
| D2_NEW_CR2477.STL | 4.4 MB | 265 |
| D1.STL | 5.32 MB | 330 |
| D2.STL | 5.2 MB | 299 |
| D_b.STL | 798.21 kB | 242 |
| D1_NEW.STL | 5.27 MB | 273 |
| D2_NEW_CR2430.STL | 4.4 MB | 305 |
| D2_NEW_CR2450.STL | 4.4 MB | 261 |
| 154v3B.rar | 52.94 kB | 48 |
| 154v3T_A.rar | 109.43 kB | 42 |
| 154v3T_A_plus.rar | 115.68 kB | 38 |
| 154v3T_B.rar | 117.56 kB | 33 |
| 154v3T_B_plus.rar | 122.2 kB | 45 |
