Make a donation to giltesaAndonstar LED Light

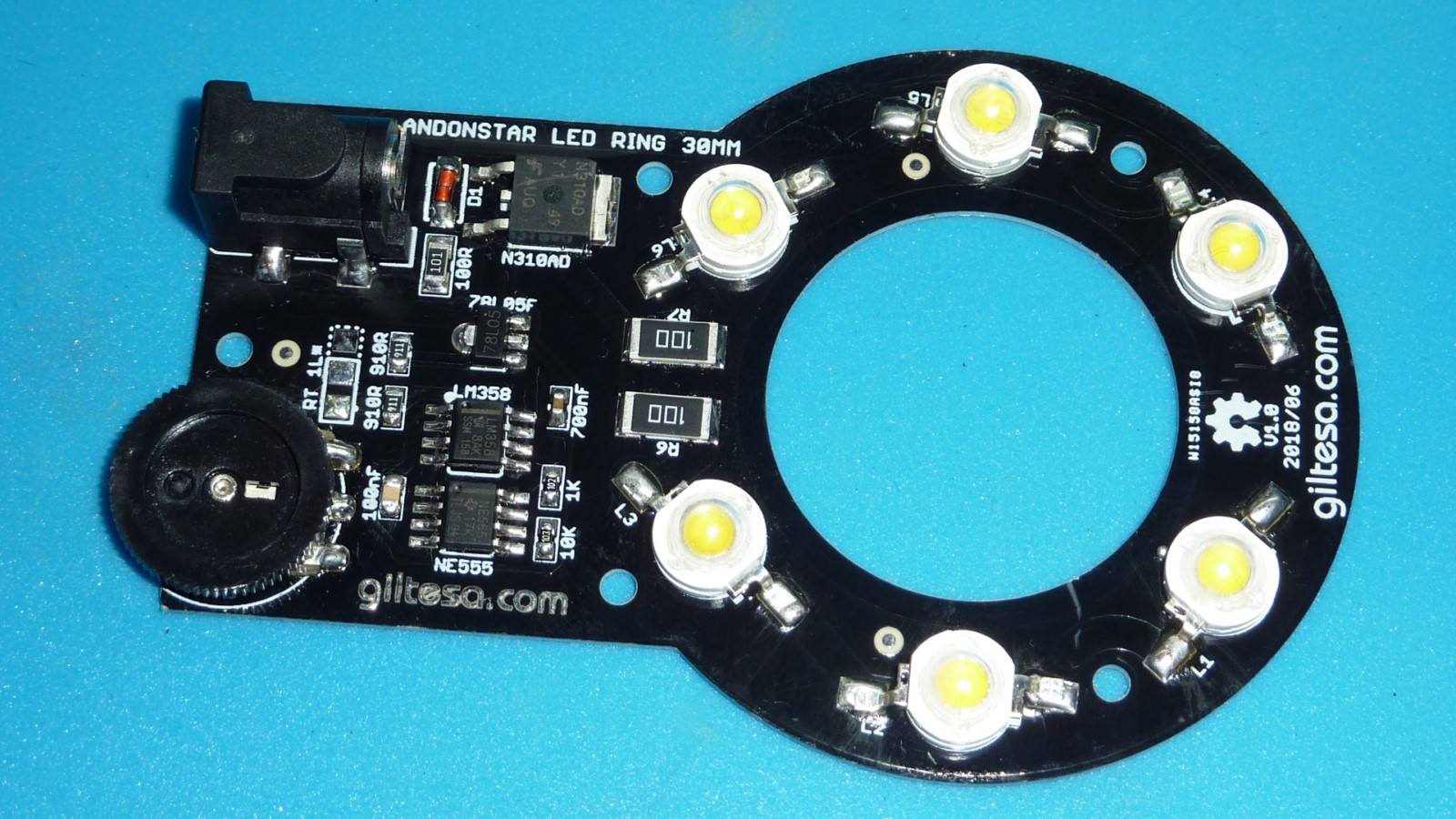

This is an electronic circuit made of aluminum to build a light that attaches to the Andonstar ADSM201 microscope.
Here is more information, but it is in Spanish: Lampara LED para microscopio Andonstar ADSM201.
Youtube Video:
License
This project is licensed under the license Creative Commons of type: Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) . Check the file LICENSE.md for more information.
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 6 | 1W | LED_Z_POWER | L1, L2, L3, L4, L5, L6 | https://www.aliexpress.com/item/10pcs-1W-3W-High-Powre-LED-Bead-Neutral-White-4000-4500K-LED-Chip-Emitter-for-light/32841247517.html | ||||
| 1 | 2.1MMJACKSMT | 2.1MMJACKSMT | U$2 | https://www.aliexpress.com/item/10PCS-SMD-DC-005-DC-050-DC-Power-Jack-Socket-Connector-DC005-5-5-2-1mm/32784185040.html | ||||
| 1 | 10K* | TRIMPOT_16MM_SMD | R8 | https://www.aliexpress.com/item/10pcs-Dual-Potentiometer-B103-10K-Audio-Potentiometer-Diameter/32672253655.html | ||||
| 1 | 100R | R1206 | R1 | https://www.ebay.es/itm/20pcs-Case-2512-1W-SMD-SMT-Resistor-10-Ohm-Ω-10R-Tolerance-5/172644984590 | ||||
| 1 | DIODE-GF1 | D1 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | |||||
| 2 | 910R | R0603 | R4, R5 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | 1K | R0603 | R3 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | 10K | R0603 | R2 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 2 | 10R 1W | R-US_R2512 | R6, R7 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | 100nF | C0603 | C3 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | 700nF | C0603 | C2 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | 78L05F | 78L05F | VR1 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | LM358 | LM358 | U1 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | N310AD | FDD8447L | G1 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 | ||||
| 1 | NE555 | NE555D | IC1 | https://www.ebay.es/itm/DC-12V-8A-Light-Dimmer-Brightness-Adjustable-Control-For-Single-Color-LED-Strip/182383981044 |
