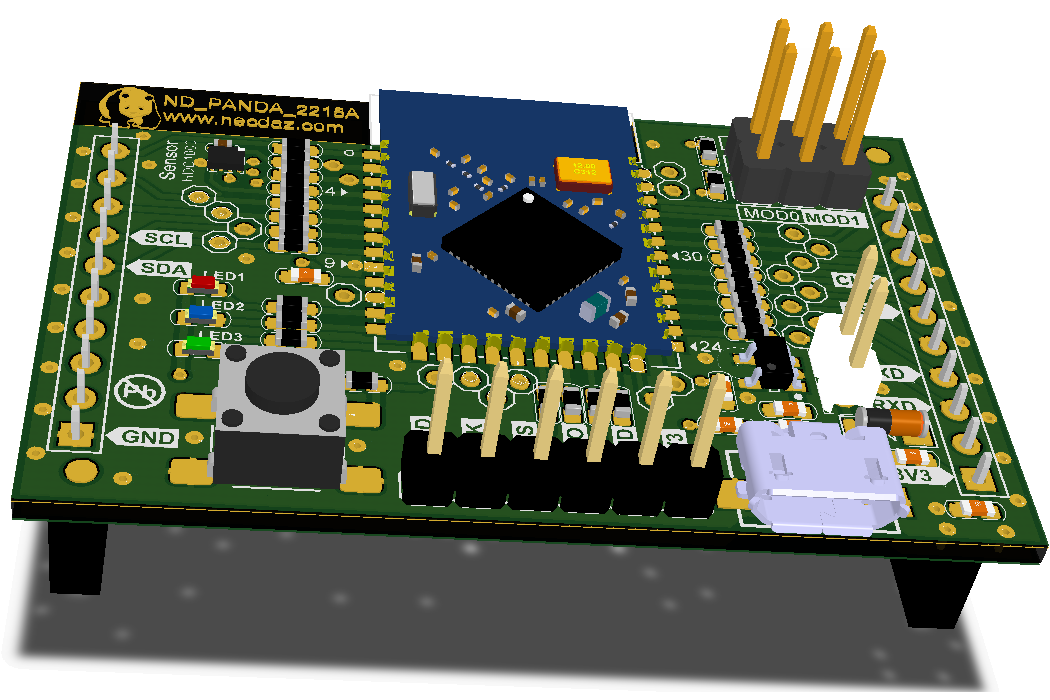

The Panda serial plug-in module(Open for download)is an easy-to-use plug-in module for adding T2640A or T1310A RF module with digital sensor to LaunchPad development kit design. TI MSP430G2 mother board development kit developers can use this plug-in module to start developing CC2640/CC1310 with sensor applications using the onboard humidity sensors.
1. Key Features
Support T2640A or T1310A RF Module
Works with TI MSP430G2 Mother Board development kits
USB 5.0V Power supply
The following figure shows the pinout of the Panda-2215 plug-in module.
The ND-Panda plug-in module adheres to the 20-pin LaunchPad development kit and ND-Panda plug-on module pinout sthandard. The ND-Panda plug-in module has female headers to support stacking on top. You must take careful consideration when stacking to the launchPad.
3. Mother Board(Open for download)

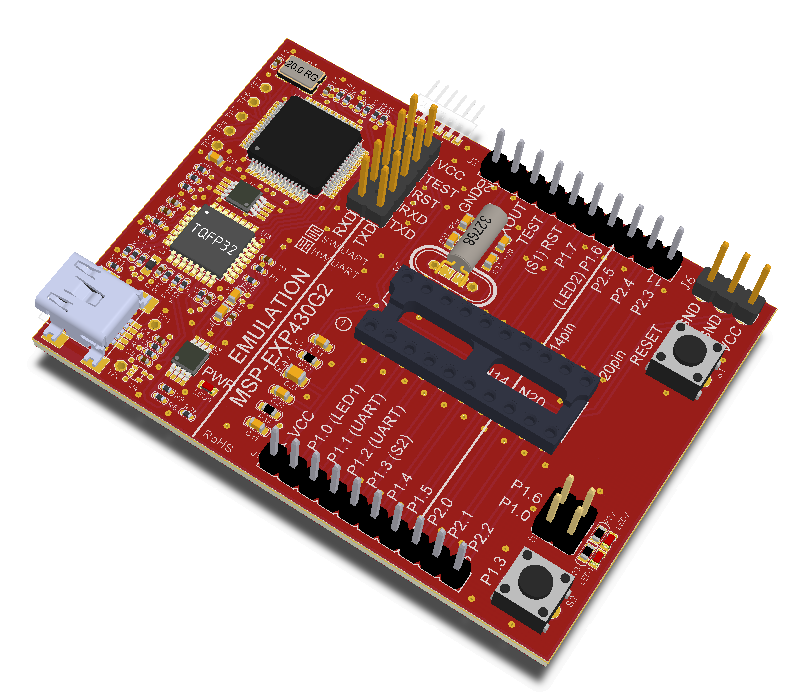

The MSPG2-Mother Development Kit is an easy-to-use microcontroller development board for the low-power and low-cost MSP430G2x MCUs. It has on-board emulation for programming and debugging and features a 14/20-pin DIP socket, on-board buttons and LEDs & Plug-in module pinouts that support a wide range of modules for added functionality such as wireless, displays & more.

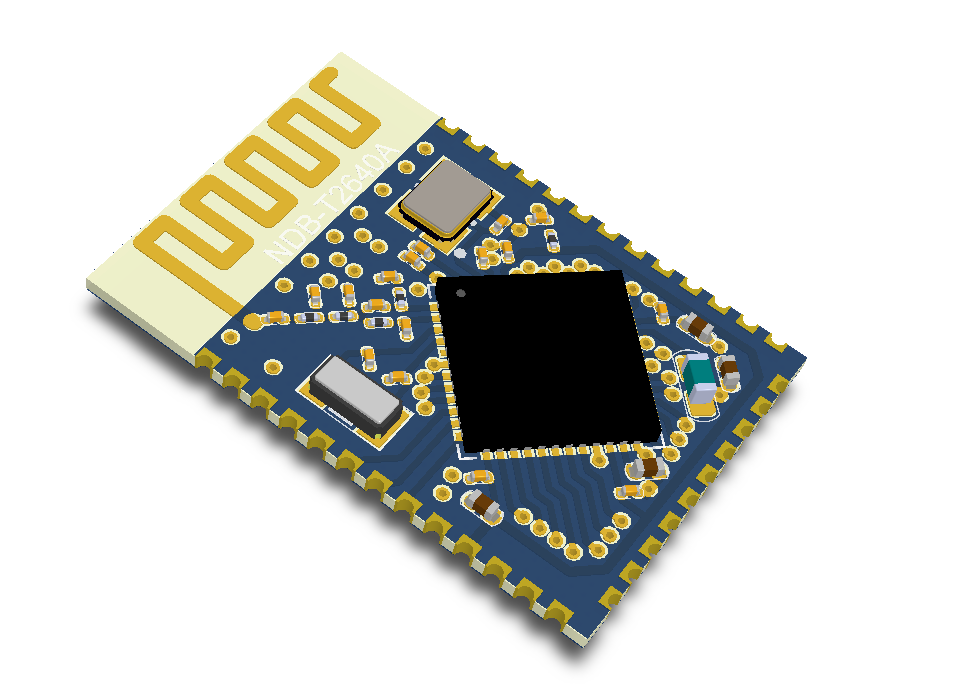

NDB-T2640A1 module is designed based on CC2640F128F128 Bluetooth Smart BLE4.1 or BT 5.0 System-on-Chip, fully supports the single mode Bluetooth Low Energy operation. The module contains a 32-bit ARM CortexTM-M3 processor, with the working frequency at 48.0 MHz which is the same as the main processor. The module has rich peripherals function libraries, and a unique ultra-low power sensor controller, which is fit for connecting the external sensors in the sleep mode and/or acquiring analog and digital data independently.
More Board information please contact me: Email: firstname.lastname@example.org
