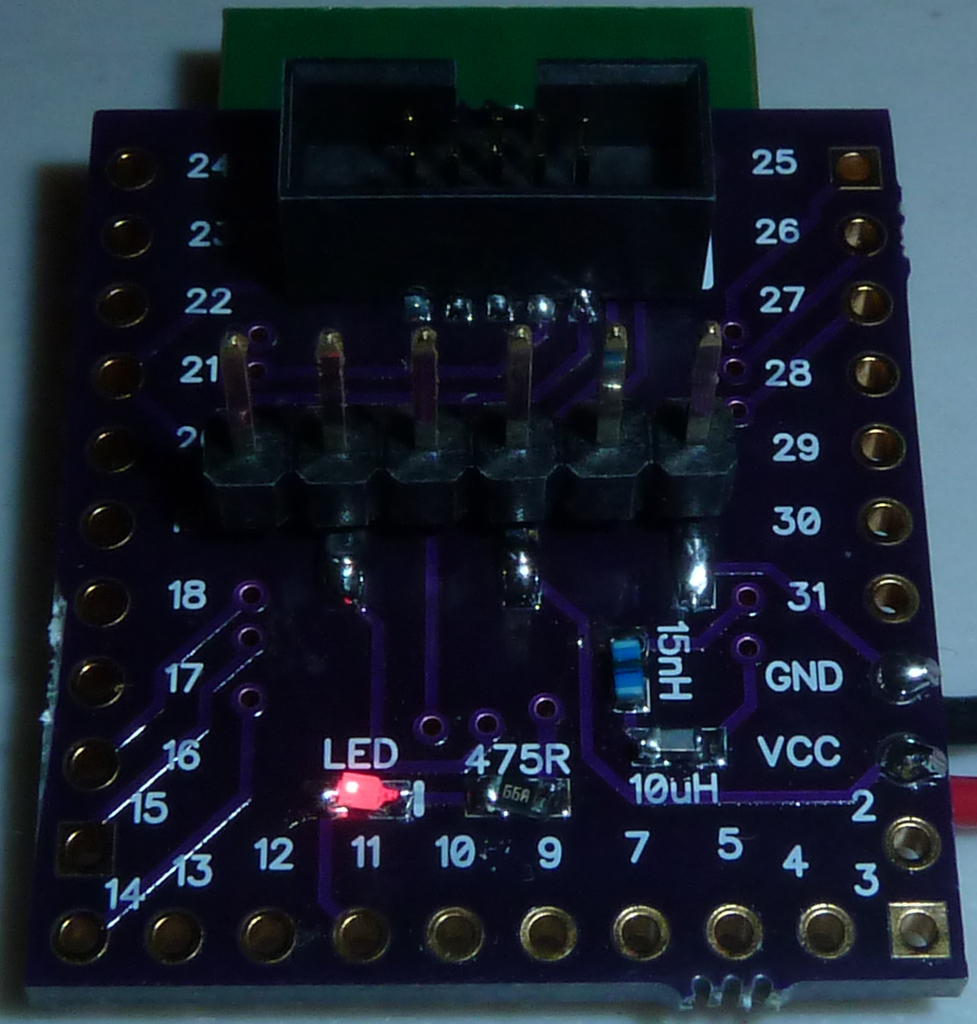

Donate to support Open HardwareThis simple, yet compact, breakout board does 4 basic things:
- Provides the missing hardware necessary to enable the module's DC/DC voltage regulation, thereby extending battery life,
- Provides an ARM 10-pin connector for programming/debugging of the module,
- Provides a typical 6-pin connector for serial input and output to and from the module,
- Provides a 2.54mm pitch pinout for the remaining useful pins on the module.
For background information, see: https://www.openhardware.io/view/376/MySensors-NRF5-Platform
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 1 | 15nH | Inductor | 0603 | SMD shielded inductor | TDK | MLG0603S15NJT000 | http://www.mouser.com/Search/ProductDetail.aspx?R=MLG0603S15NJT000virtualkey52130000virtualkey810-MLG0603S15NJT000 | |
| 1 | 10uH | Inductor | 0603 | SMD shielded inductor | TDK | MLZ1608M100WT000 | https://www.digikey.com/product-detail/en/tdk-corporation/MLZ1608M100WT000/445-6389-1-ND/2465716 | |
| 1 | 475 Ohm | Resistor | 0603 | SMD Resistor | Bourns | CR0603-FX-4750ELF | https://www.digikey.com/product-detail/en/bourns-inc/CR0603-FX-4750ELF/CR0603-FX-4750ELFCT-ND/3740885 | |
| 1 | LED | 0603 | SMD LED with 1.7v forward drop | Lumex | SML-LX0603SRW-TR | https://www.digikey.com/product-detail/en/lumex-opto-components-inc/SML-LX0603SRW-TR/67-1551-1-ND/304364 | ||
| 1 | HDR | SMD 6-pin Male HDR | Harwin | M20-8770642 | https://www.digikey.com/scripts/DkSearch/dksus.dll?Detail&itemSeq=237488221&uq=636401271172583037 | |||
| 1 | HDR | SMD 10-pin box HDR | CNC Tech | 3220-10-0300-00 | https://www.digikey.com/product-detail/en/cnc-tech/3220-10-0300-00/1175-1629-ND/3883266 |
| Name | Size | # Downloads |
|---|---|---|
| BoardOutline.gbr | 303 B | 785 |
| Bottom.gbr | 3.5 kB | 669 |
| BottomAssy.gbr | 189 B | 663 |
| BottomDimension.gbr | 199 B | 642 |
| BottomMask.gbr | 1.16 kB | 590 |
| BottomPaste.gbr | 715 B | 642 |
| Through.drl | 904 B | 660 |
| Top.gbr | 8.84 kB | 670 |
| TopAssy.gbr | 186 B | 583 |
| TopDimension.gbr | 196 B | 659 |
| TopMask.gbr | 1.28 kB | 572 |
| TopPaste.gbr | 843 B | 633 |
| Schematic v007 for Ebyte nRF52832 Small Breakout Board.pdf | 17.87 kB | 699 |
| TopSilk.gbr | 4.57 kB | 643 |
| BottomSilk.gbr | 18.19 kB | 652 |
| Name | Size | # Downloads |
|---|---|---|
| Blink_Serial_Demo_v001.ino | 1.7 kB | 778 |
| MyNRF5Board.cpp | 2.86 kB | 729 |
| MyNRF5Board.h | 4.76 kB | 730 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 6 years ago | 2 | 26 × 30 |
