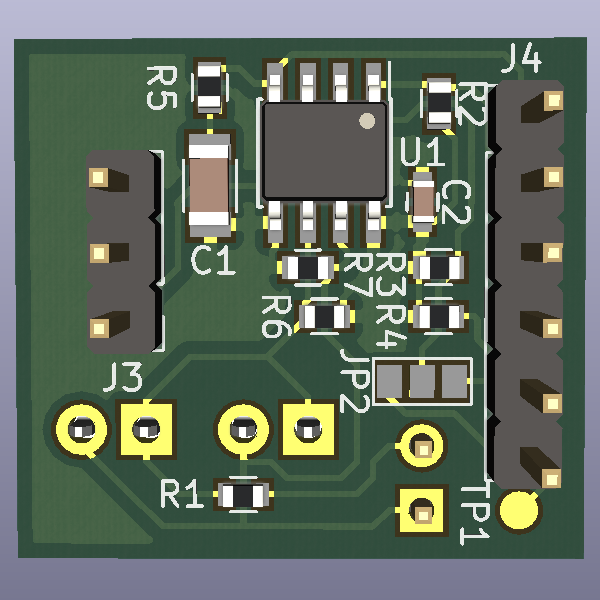

Make a donation to csabarThis is a MAX485 shield for Arduino Pro Mini, which can be connected easily by pin headers. With the screw terminal, it is easy to connect to the twisted-pair bus. The item at the end of the bus can be terminated using a jumper.
The idea came when I saw the popular cheap MAX485 boards, which are hard to connect and have much bigger footprint. With this shield you can create a cheap decentralized wired home automation network. Due to its small footprint it is possible to install in small junction box.
Price of the components + PCB is around $2.20
| Reference | Quantity | Value | Footprint | Datasheet | Aliexpress link | Unit price $ |
|---|---|---|---|---|---|---|
| C1 | 1 | 10u/16V | Capacitors_SMD:C_1206 | https://www.aliexpress.com/item/Free-shipping-1206-SMD-capacitor-10UF-25V-106M-100PCS/32371669400.html | 0.02 | |
| C2 | 1 | 100n/16V | Capacitors_SMD:C_0603 | https://www.aliexpress.com/item/0603-SMD-Capacitor-assorted-kit-52values-25pcs-1300pcs-1pF-1uF-Samples-kit/1727377024.html | 0.01 | |
| J1 J2 | 2 | Screw_Terminal_1x02 | Connectors_Terminal_Blocks:TerminalBlock_Pheonix_MPT-2.54mm_2pol | https://www.aliexpress.com/item/50-pcs-Universal-2-54-mm-Pitch-2-Pin-3-4-5-6-7-8-9/32809307718.html | 0.20 | |
| J3 | 1 | CONN_01X03 | Pin_Headers:Pin_Header_Straight_1x03_Pitch2.54mm | https://www.aliexpress.com/item/Hot-Sale10pcs-40-Pin-1x40-Single-Row-Male-2-54-Breakable-Pin-Header-Connector-Strip-for/32374809500.html | 0.004 | |
| J4 | 1 | CONN_01X06 | Pin_Headers:Pin_Header_Straight_1x06_Pitch2.54mm | 0.008 | ||
| JP1 | 1 | Jumper | Pin_Headers:Pin_Header_Straight_1x02_Pitch2.54mm | 0.003 | ||
| JP2 | 1 | Jumper_NC_Dual | Connectors:GS3 | 0.00 | ||
| R1 | 1 | 120R | Resistors_SMD:R_0603 | 0.003 | ||
| R2 R3 R4 R5 | 4 | 10k0 | Resistors_SMD:R_0603 | https://www.aliexpress.com/item/Free-shipping-Hot-sale-0603-SMD-Resistor-Kit-Assorted-Kit-1ohm-10M-ohm-1-36valuesX20pcs-720pcs/32359683117.html | 0.003 | |
| R6 R7 | 2 | 20k | Resistors_SMD:R_0603 | 0.003 | ||
| TP1 | 1 | TEST | Measurement_Points:Measurement_Point_Round-SMD-Pad_Small | 0.00 | ||
| U1 | 1 | MAX485E | Housings_SOIC:SOIC-8_3.9x4.9mm_Pitch1.27mm | https://datasheets.maximintegrated.com/en/ds/MAX1487-MAX491.pdf | https://www.aliexpress.com/item/XIN-YANG-Electronic-NEW-ORIGINAL-MAX485CSA-T-MAX485CSA-MAX485-SOP-MAXIM-Free-shipping/32355724259.html | 0.60 |
