This is a very simple and easy to assemble 3.3v Arduino Pro Mini shield for the nRF24L01 which uses the mysensors recommended connections (https://www.mysensors.org/build/connect_radio). It also includes pads for an optional 0805 SMD capacitor (4.7uF to 47uF).

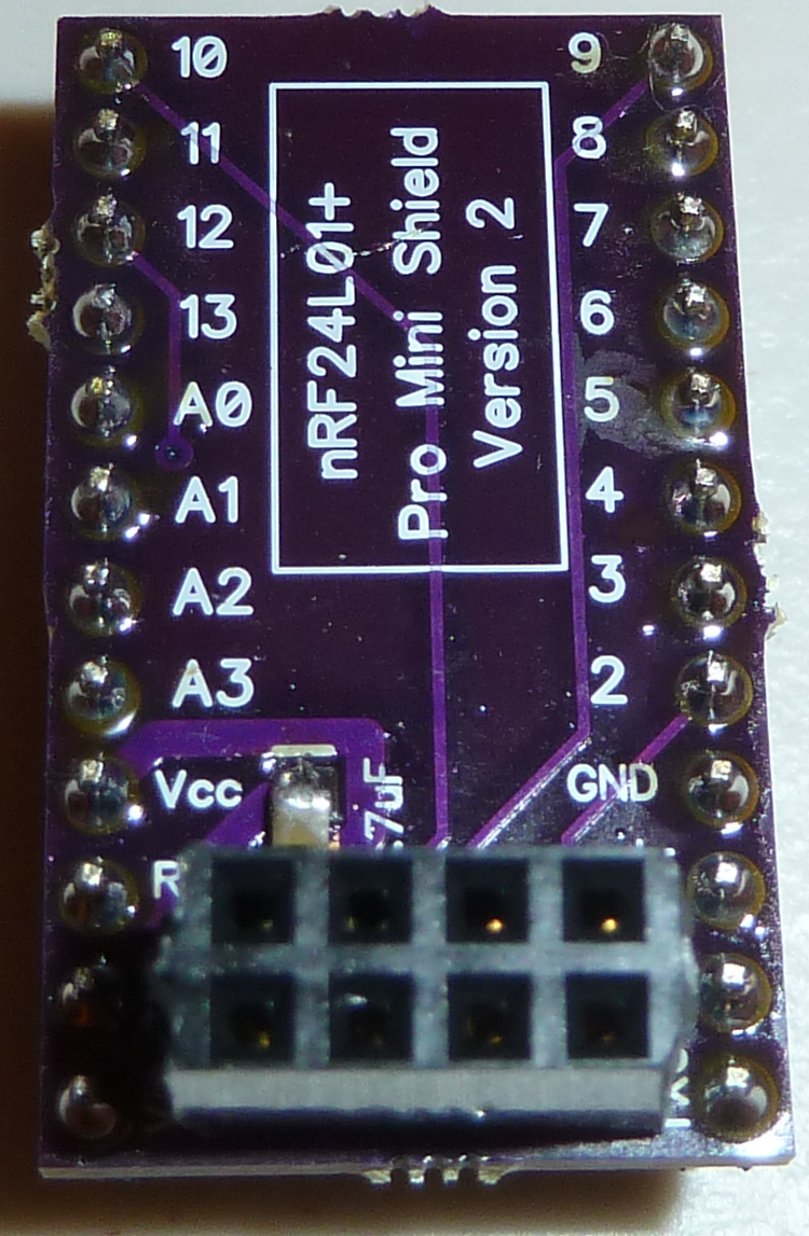

In the attached photos, I used a 22uF 0805 SMD capacitor, and I tested each of these boards:
and
Both successfully communicated with a MySensors Serial Gateway using this project shield connected to a 3.3v Arduino Pro Mini (with voltage regulator removed) and powered by a 6-pin FTDI 3.3v usb-to-serial connection. You could easily power the same configuration with two AA batteries instead. Acceptable input voltage is 1.8v to 3.6v.
Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
---|---|---|---|---|---|---|---|---|
1 | 4.7uF to 47uF | capacitor | 0805 SMD | optional, but recommended |
Name | Size | # Downloads |
---|---|---|
BoardOutline.gbr | 289 B | 513 |
Bottom.gbr | 1.12 kB | 482 |
BottomAssy.gbr | 189 B | 489 |
BottomDimension.gbr | 199 B | 526 |
BottomMask.gbr | 737 B | 500 |
BottomPaste.gbr | 189 B | 543 |
BottomSilk.gbr | 5.42 kB | 552 |
Through.drl | 652 B | 516 |
Top.gbr | 1.54 kB | 521 |
TopAssy.gbr | 186 B | 520 |
TopDimension.gbr | 196 B | 489 |
TopMask.gbr | 800 B | 496 |
TopPaste.gbr | 252 B | 535 |
TopSilk.gbr | 14.92 kB | 547 |
Revision | Created | Layers | Dimensions |
---|---|---|---|
rev1 | 7 years ago | 2 | 19 × 31 |
