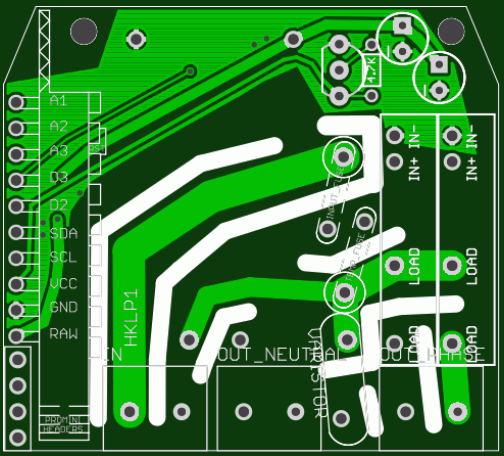

This is a dual SSR sensor shield for NModule, to control lights. It has a compact size (47*43mm), is easy to solder and (I hope :D ) safe with main fuse, temperature fuse, varistor, DS18 to monitor temperature, ample creepage and clearance with wide slots and tracks wide enough so it's not necessary to reinforce them with solder and they are not exposed.
Detailed instructions will be published after I receive the PCBs.
| Part | Value | Device | Package | Description | STORE_ID | |
|---|---|---|---|---|---|---|
| C1 | CAP_POLPTH2 | CPOL-RADIAL-10UF-25V | Capacitor Polarized | |||
| C2 | CAP_POLPTH2 | CPOL-RADIAL-10UF-25V | Capacitor Polarized | |||
| DS18 | DS18B20 | DS18B20 | TO-92-AMMO | Dallas/Maxim DS18B20 1-wire temperature sensor | SEN-00245 | |
| HKLP1 | HKLPM01 | HKLPM01 | HKLPM01 | |||
| IN | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | |||
| INPUT_FUSE | FUSEAXIAL_11_36_VERTICAL | FUSEAXIAL_11_36_VERTICAL | FUSE_AXIAL_VERTICAL | Main power fuses, margin included to bend pins : | ||
| J_I2C | CONNECTOR_4DUPONT | DUPONT_4 | ||||
| K1 | SSR | RELAY_SSD_SPST | RELAY_G3MB_SPST | |||
| K2 | SSR | RELAY_SSD_SPST | RELAY_G3MB_SPST | |||
| OUT_NEUTRAL | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | |||
| OUT_PHASE | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | SCREW_CONNECTOR_2X | |||
| R1 | 4.7K | RESISTORPTH-1/6W | 1/6W-RES | Resistor | ||
| TEMP_FUSE | FUSEAXIAL_11_36_VERTICAL | FUSEAXIAL_11_36_VERTICAL | FUSE_AXIAL_VERTICAL | Main power fuses, margin included to bend pins : | ||
| U$3 | NMODULEVERTICAL | NMODULEVERTICAL | NMODULE_VERTICAL | |||
| VARISTOR | VARISTOR | VARISTOR | VARISTOR |
