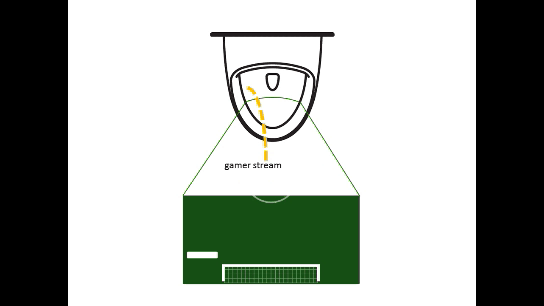

Pinect is an open-source project for a hand-free game console, also known as interactive urinals. Like all game consoles, it is designed for fun and entertainment. Currently, there is only one Pinect game available, called PiBall. It is a network arcade game for two players, which combines elements of ping pong and football.
The comprehensive guide on how to do so from “scratch” using an Arduino, Android device, cheap USB camera and PLA filament. This decision was created a modularized, flexible and extensible platform.



Android soft:

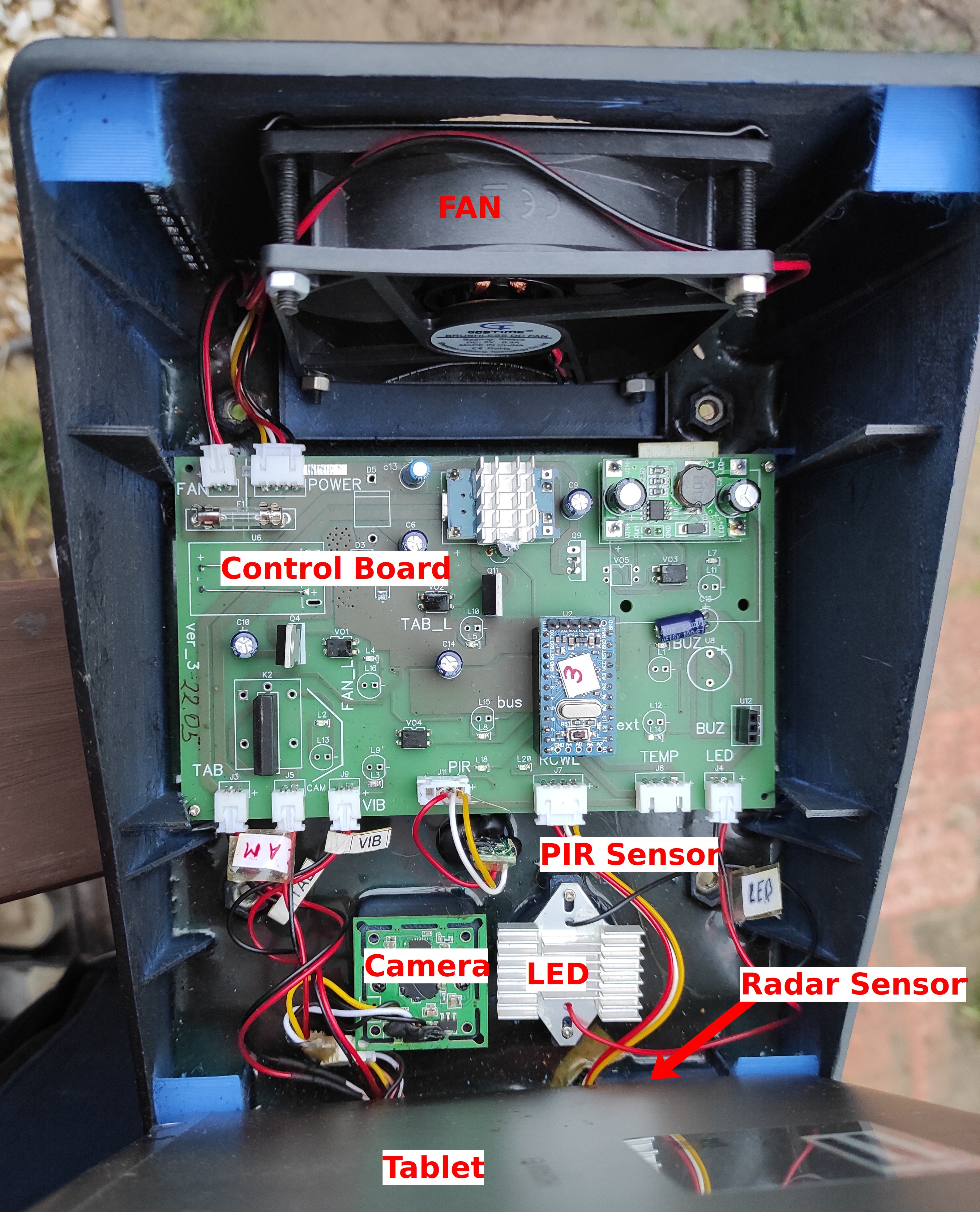

| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 1 | arduino mini | |||||||
| 1 | Tablet | Huawei Mediapad T3 10 | ||||||
| 1 | 3d printed case | |||||||
| 1 | fan | |||||||
| 1 | Control board | https://ser-mk.github.io/pinect/controlboard/ | ||||||
| 1 | PIR sensor | |||||||
| 1 | RF doppler sensor | |||||||
| 1 | USB camera 0.3M | |||||||
| 1 | LED 1W | |||||||
| 1 | LED Lens |
| Name | Size | # Downloads |
|---|---|---|
| pinect-box-19.stl | 501.45 kB | 405 |
| pcb.dip | 431.63 kB | 416 |
| scheme.dch | 423.79 kB | 424 |
