This is a schematic and PCB design for a four channel energy monitor. Each channel is made up of two measurements - voltage and current. The microcontroller is an ESP8266 on a Wemos D1 mini carrier. The measurements are taken with four ADS1115 A/D converters used in differential mode. ESPHome code is also included.
Let's get this out of the way first. There is no fuse protection on any of the inputs. That would have been a goode idea. Also the voltage measurement is taken directly from the mains connected to the voltage inputs. In other words, no isolation. Also could have been done better. Finally, powering the ESP8266 from the input supply would have been nice instead of requiring a separate USB supply. All this being said, a second generation of this board has been created sans the fused inputs. That will be in a different repository when I get to it... [as of 21-sept-2022].
If you shock yourself or worse, don't blame me. You decided to build this thing and I an not responsible for how you do or don't protect yourself.
The resistor values used in the schamatic on the voltage inputs are for measuring up to 120VAC.
You must change the resistor values to suit your current transformers and voltage inputs
The schematic specifies varisters be placed across the voltage input connections. The 20D201K MOV is rated for 130V clamping so if you want to measure a higher (or lower) voltage, change the MOV as appropriate. You want to select a MOV with a voltage rating slightly higher than the measured voltage.
The current inputs include a burden resistor for the current transformers. The value specified in the schematic is for a 3000:1 100A current transformer.
Depending on what transformer you you, you will need to add the correct burden resistor. NEVER connect a current transformer without a burden resistor. You will destroy the A/D converter. The only exception is if you use a current transformer that has a burden resitor built in.
The governing factor is the maximum input voltage for the A/D converter. The ADS1115 has a maximum input voltage of 6.144v (since they are connected to be operated in differential mode) You will need to make these changes if you want to change the range of input currents and/or voltages.
The voltage divider resistors Keep the values fairly high so you do not have too much current goign through the divider and thus too much power disapation for the resistors. The schematic describes a voltage divider that has an "output" voltage of 3.725v at 120v "input"
120V / 1063K = 113uA * 33K = 3.72V
Note: The value of the resistor across the differential inputs should be significantly smaller than the 22M ohm input inpedance.
The current transformer burden resistors The burden resistor should likewise be chosen to keep the input to the A/D converter below 6.144v. Choose a current transformer that is rated for the load you are going to measure. For example [only] if you have a 240v split phase 200A service at your home (i.e. the main breaker is rated for 200A) then you should use a current transformer that could handle the full 100A per phase plus some headroom. A 150A current transformer would suffice. Then, using the current ratio of the transformer, you sould choose a resistor that would provide you a maximum value of 6.144v minus some headroom (such as 5v maximum).
Assuming a 1000:1 current transformer and 100A flowing through the conductor:
100A / 1000 = 0.1A * R = 5v. R = 50 ohms
Input protection The inputs are protected with metal oxide varisters - or voltage controlled resistors. As the voltage increases, the resistance goes down. If too much voltage is applied, the MOVs behive like a short circuit. You should choose MOVs that suit your input voltages. Incidentally these are the saem devices used in "surge supressors" that you may find. More information for selectiong one can be found in the resource links below.
The schematic and PCB were designed using the EasyEDA standard edition software. (see link below).
This intent is to use this with Home Asssistant and the YAML code for the project is in the ESPHome folder. The code cannot be used as is. There are a few changes you need to make like addingyor SSID and SSID password as well as the HomeAssistant API encryption key.

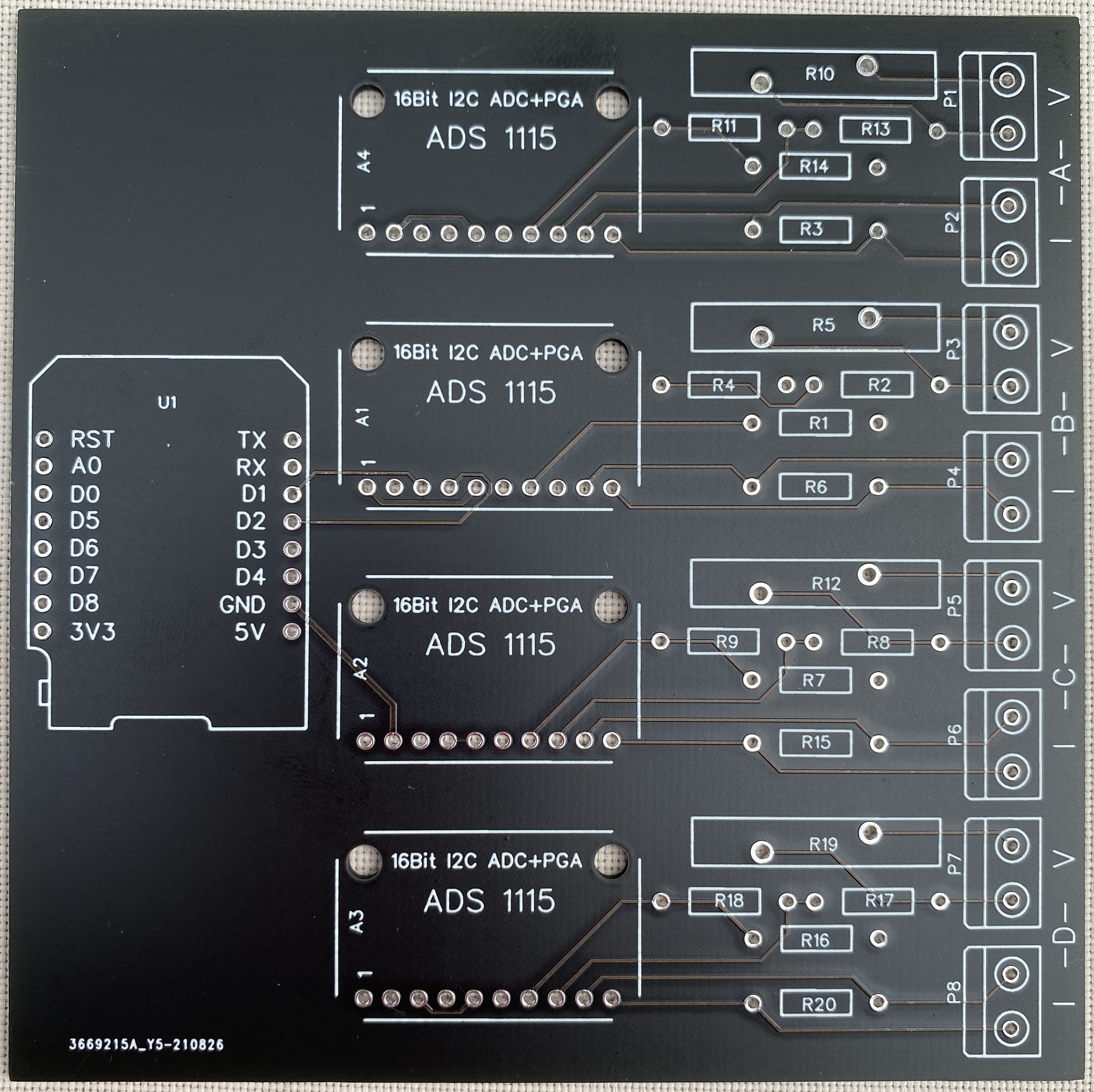

The PCB gerber files are in this folder and describe a 100mm x 100mm PCB - the maximum size PCB from JCL PCB that does not incurr additional fees.
Here are some useful references to help you.
|Qty||Value||Device||Package||Parts||Description||MF||MPN||Aliexpress or Ebay link|
|1||Wemos D1 Mini||U1||https://www.aliexpress.us/item/2251832465432818.html|
|4||33K||Axial||1/8w 33K 1% metal film flameproof resistor||Various|
|4||82||Axial||1/8w 820 1% metal film flameproof resistor||Various|
|4||470K||Axial||1/8w 470K 1% metal film flameproof resistor||Various|
|4||560K||Axial||1/8w 560K 1% metal film flameproof resistor||Various|
|4||20D201K||200V (130V) MOV||https://www.aliexpress.us/item/3256804121170427.html|
|8||Terminal||2-contact screw terminal||https://www.aliexpress.us/item/3256801154821056.html|
|rev1||2 weeks ago||2||100 × 100|
