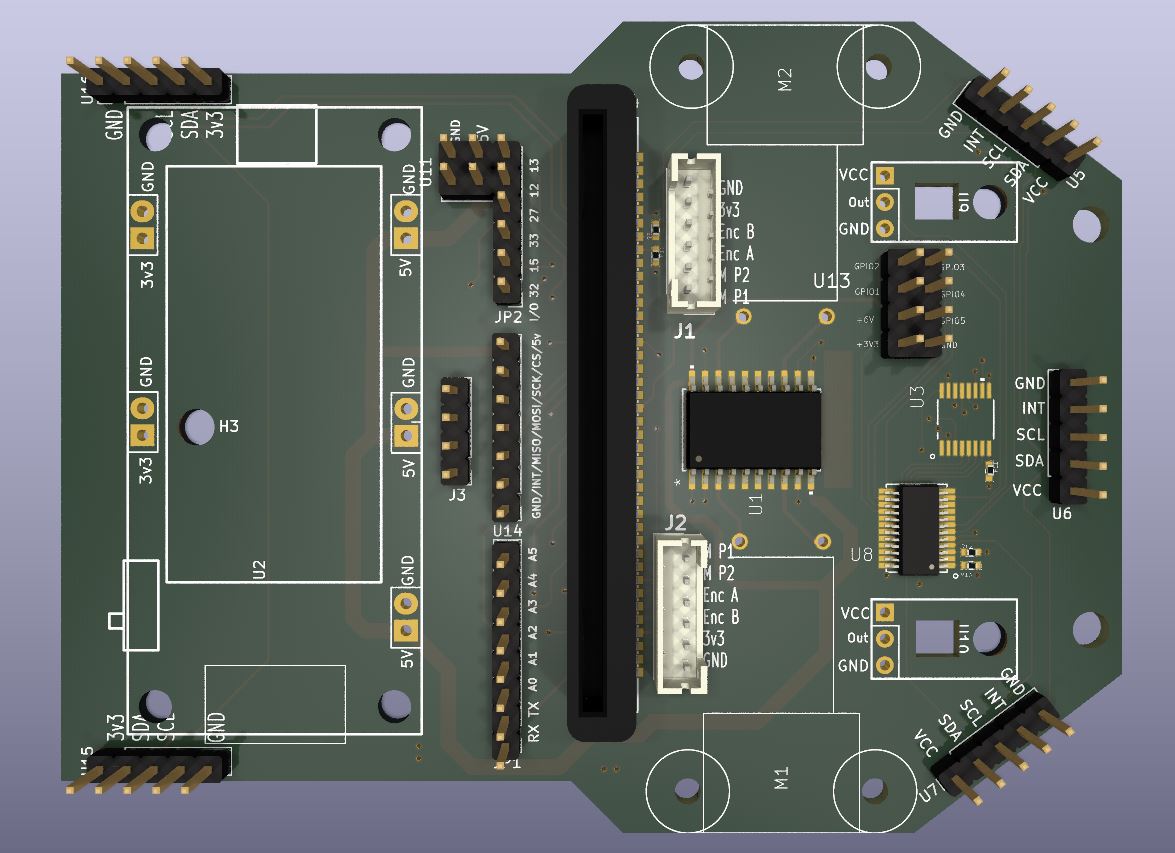

Firmware and hardware design files for the TimeExpander.com Micro:bit based robot

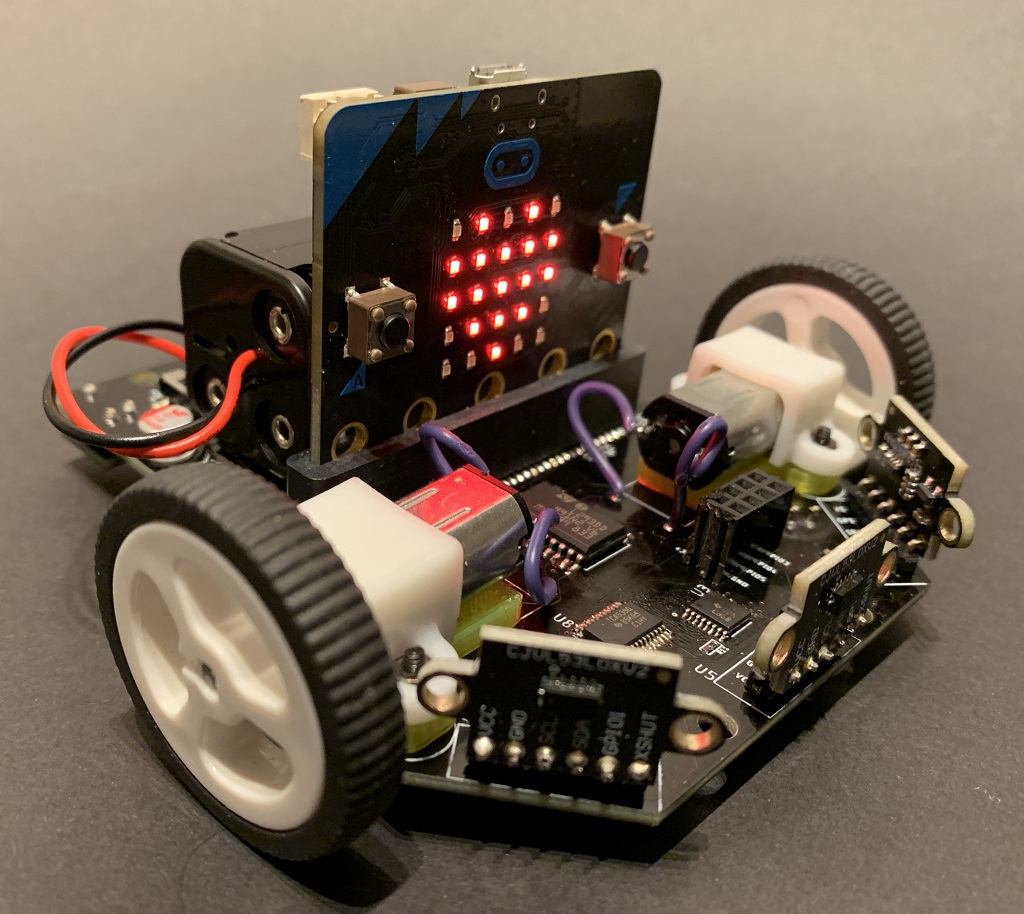

The bot features two motor bridges, 3 x time of flight sensors, 4 x reflective object sensors and a GPIO Expander.
Toolchain for building the firmware is the mBed online compiler.
You can watch one of the demo state machines in action here: https://youtu.be/_6B225iNg58
There is an untested v3 in the Hardware folder. See v3 Readme
This is the latest tested version.



| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| BOM | ||||||||
| Item # | *Designator | *Qty | Manufacturer | *Mfg Part # | Description / Value | *Package/Footprint | Your Instructions / Notes | |
| 1 | C1 | 1 | LCSC | C2763765 | C1 100uF ALUMINUM_WURTH_100UF_865080243007 TimeExpander2 (24.257 13.2715) R270 | SMD | https://lcsc.com/product-detail/Pre-ordered-RLCs_Wurth-Elektronik-865080243007_C2164012.html | |
| 2 | R9, R10, R11, R12,R13 | 5 | LCSC | C2763765 | R9 10k RES_0402 TimeExpander2 (53.1495 57.3405) R90 | 402 | https://lcsc.com/product-detail/Chip-Resistor-Surface-Mount_SANYEAR-SY0402DE10KP_C2763765.html | |
| 3 | S1 | 1 | LCSC | C221666 | S1 POWER SWITCH_JS202011SCQN TimeExpander2 (10.541 18.415) R90 | SMD | https://www.lcsc.com/product-detail/Others_C-K-JS202011SCQN_C221666.html | |
| 4 | U1 | 1 | LCSC | C434591 | U1 L293DD SO-20 TimeExpander2 (62.357 38.735) R90 | SOP-20 | https://lcsc.com/product-detail/Motor-Driver-ICs_HGSEMI-L293DDM_C434591.html | |
| 5 | U3 | 1 | LCSC | C38253 | U3 TXB0106PWRPW16-L PW16-L TimeExpander2 (82.931 39.751) R90 | TSSOP-16 | https://lcsc.com/product-detail/Translators-Level-Shifters_Texas-Instruments-TXB0106PWR_C38253.html | |
| 6 | U4 | 1 | ?? | U4 BBC Micro:bit CYCLONE_MICROBIT_VERTICAL TimeExpander2 (50.165 64.9605) R270 | Microbit edge | https://www.aliexpress.com/item/1005004070427086.html | ||
| 7 | U5, U6, U7, | 3 | LCSC | C2935930 | U5 VL53LOX - Right VL53LOX TimeExpander2 (92.202 33.02) R180 | Push-Pull,P=2.54mm | https://lcsc.com/product-detail/Pin-Headers_DEALON-DZ254W-11-05-65_C2935930.html | |
| 8 | U8 | 1 | LCSC | C465732 | TCA9555PWR | 24-TSSOP | https://lcsc.com/product-detail/I-O-Expanders_Texas-Instruments-TCA9555PWR_C465732.html | |
| 9 | J1, J2.5 | 2 | LCSC | C274409 | JST-Sales-America-B6B-PH-K-LF-SN | Straight,P=2mm | https://lcsc.com/product-detail/Wire-To-Board-Wire-To-Wire-Connector_JST-Sales-America-B6B-PH-K-LF-SN_C274409.html | |
| 20;"U9";"SparkFun QRE1113";1;"NW";;; | U9 | DNP | DNP | DNP | ||||
| U14 | LCSC | 21;"U14";"PinHeader_1x07_P2.54mm_Vertical";1;"Conn_01x07";;; | https://lcsc.com/product-detail/Female-Headers_DEALON-DM254R-11-07-85_C2935978.html | |||||
| U11 | LCSC | 22;"U11";"PinHeader_2x02_P2.54mm_Vertical";1;"Conn_02x02_Top_Bottom";;; | https://lcsc.com/product-detail/Female-Headers_DEALON-DM254R-11-02-85_C2935973.html | |||||
| JP1 | LCSC | 8p | https://lcsc.com/product-detail/Female-Headers_DEALON-DM254R-11-08-85_C2935979.html | |||||
| JP2 | LCSC | 6p | https://lcsc.com/product-detail/Female-Headers_DEALON-DM254R-11-06-85_C2935977.html | |||||
| J3 | LCSC | 4p | https://lcsc.com/product-detail/Female-Headers_DEALON-DM254R-11-04-85_C2935975.html | |||||
| U15, U16 | LCSC | 5p | https://lcsc.com/product-detail/Female-Headers_XFCN-PM254V-11-05-H85_C541852.html |
