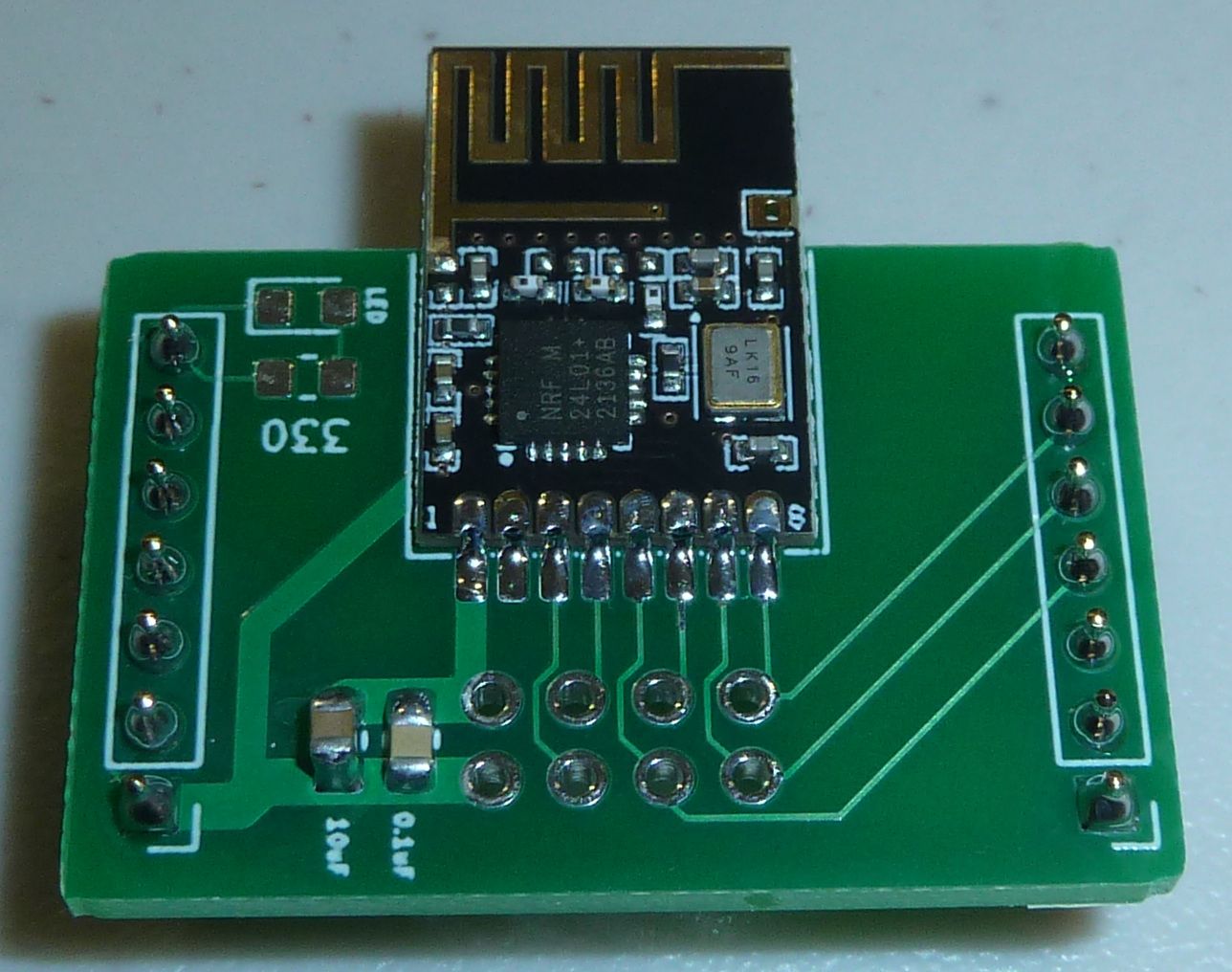

nRF24L01 adapter board
Posted as per @Loran's request. Fits base platform: https://www.openhardware.io/view/22651/Version-10-atmega328p-test-platform
I have tested this adapter, and it works.
I posted the complete KiCAD 6 archive for this project. It is the .rar file under this project's "Files" tab. That means I'm not a bottleneck. Anyone can open up the project and pick up exactly where I left off if they want to make changes or fork.
Inside the .rar file is a zip file. Don't unzip the .zip file. Rather, in Kicad 6, under the "File..." menu, go to "Unarchive project...." and give it the intact .zip file.
| Name | Size | # Downloads |
|---|---|---|
| nRF24L01_shield_v001-B_Cu.gbr | 3.29 kB | 142 |
| nRF24L01_shield_v001-B_Mask.gbr | 1.2 kB | 119 |
| nRF24L01_shield_v001-B_Paste.gbr | 521 B | 113 |
| nRF24L01_shield_v001-B_Silkscreen.gbr | 38.38 kB | 119 |
| nRF24L01_shield_v001-Edge_Cuts.gbr | 751 B | 120 |
| nRF24L01_shield_v001-F_Cu.gbr | 6.69 kB | 123 |
| nRF24L01_shield_v001-F_Mask.gbr | 2.63 kB | 118 |
| nRF24L01_shield_v001-F_Paste.gbr | 1.94 kB | 114 |
| nRF24L01_shield_v001-F_Silkscreen.gbr | 12.64 kB | 136 |
| nRF24L01_shield_v001-NPTH.drl | 333 B | 126 |
| nRF24L01_shield_v001-PTH.drl | 700 B | 120 |
| nRF24L01_shield_v001-job.gbrjob | 2.71 kB | 121 |
| schematic_v001.pdf | 24.07 kB | 115 |
| nRF24L01_KiCAD6_project_archive.rar | 46.49 kB | 44 |
| Name | Size | # Downloads |
|---|---|---|
| nRF24_Receive_v001.ino | 2.79 kB | 170 |
| nRF24_Transmit_v001.ino | 2.62 kB | 138 |
