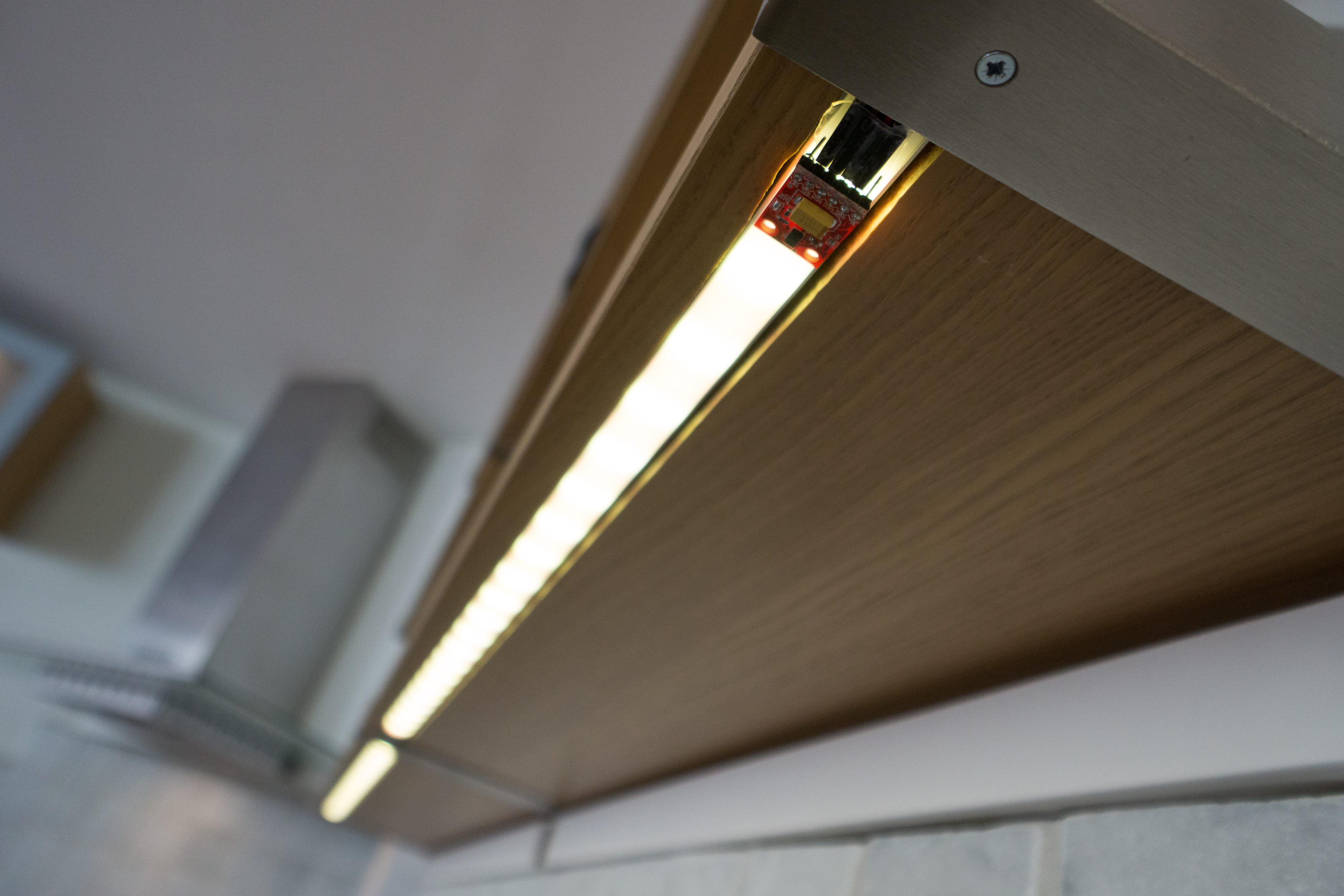

Dimmable LED kitchen light using Arduino, the APDS-9960 gesture sensor and a 12V RGBWW led strip.
Set light level by moving your hand up and down in front of the sensor. Hold still for 1 second to lock the light level (short blink confirms that the lock is engaged).
Color/temperature calibrated to match the rest of my kitchen lights. Will ignore calibration if set at highest light level.

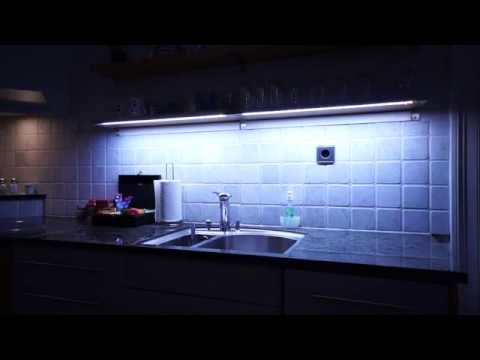

Making a movie of this was a bit hard, with handling the different light levels and light temperature, but it came out pretty ok.
This device is not (yet) MySensorizied.
| Qty | Value | Device | Package | Parts | Description | MF | MPN | Aliexpress or Ebay link |
|---|---|---|---|---|---|---|---|---|
| 1 | Arduino Pro Mini 3.3V | Arduino Pro Mini 3.3V | http://www.aliexpress.com/item/1pcs-lot-Pro-Mini-328-Mini-3-3V-8M-ATMEGA328-ATMEGA328P-AU-3-3V-8MHz-for/32313595044.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469723866910&aff_trace_key=719740e15f20496e88068d65ef873e97-1469723866910-01923-urNFynu72 | |||||
| 1 | APDS-9960 | Gesture sensor | http://www.aliexpress.com/item/RGB-and-Gesture-Sensor-APDS-9960-for-Arduino/32690220198.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469723878937&aff_trace_key=719740e15f20496e88068d65ef873e97-1469723878937-04230-urNFynu72 | |||||
| 4 | IRLZ44N | MOSFET | http://www.aliexpress.com/item/10PCS-IRLZ44NPBF-IRLZ44N-TO220-50A-60V-New-and-original/32330563148.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469723910517&aff_trace_key=719740e15f20496e88068d65ef873e97-1469723910517-01416-urNFynu72 | |||||
| 1 | Logic level converter 3.3v5V | http://www.aliexpress.com/item/Free-shipping-10pcs-lot-4-channel-IIC-I2C-Logic-Level-Converter-Bi-Directional-Module-5V-to/32458109285.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469723920278&aff_trace_key=719740e15f20496e88068d65ef873e97-1469723920278-07840-urNFynu72 | ||||||
| 1 | MB102 | 12V to 5V and 3.3V converter | http://www.aliexpress.com/item/5PCS-NEW-MB102-Breadboard-Power-Supply-Module-3-3V-5V-F-Solderless-mini-usb/32456992838.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469723943653&aff_trace_key=719740e15f20496e88068d65ef873e97-1469723943653-07539-urNFynu72 | |||||
| 5 | Female header | http://www.aliexpress.com/item/20pcs-Set-6-Pin-Female-tall-stackable-Header-Connector-socket-for-Arduino-Shield-Free-Shipping/32374306335.html | ||||||
| 1 | 470uF | Capacitor | http://www.ebay.com/itm/330831713275?rmvSB=true | |||||
| 1 | RGBWW LED strip 5050 | http://www.aliexpress.com/item/Free-Shipping-5M-RGBW-5050-SMD-LED-strip-Light-Waterproof-DC12V-60Leds-M-300-LEDS-Flexible/32563721406.html?aff_platform=aaf&sk=urNFynu72%3A&cpt=1469724157789&aff_trace_key=719740e15f20496e88068d65ef873e97-1469724157790-09849-urNFynu72 |
| Name | Size | # Downloads |
|---|---|---|
| DimmableKitchenLightGesture.ino | 3.87 kB | 1627 |
