Yo! This project is still a Work In Progress. Instructions, board layouts and BOM might change!
Donate to support Open HardwareThis is yet another small MySensors Sensor node with:
Atmega328p
ATSHA204A
W25X40CLSNIG
voltage divider
SMD NRF24L01+
DS18B20 (either directly soldered to board or via cable for external measurement)
3 LEDs (SCK, D6, D7, on backside)
2 Pushbuttons (Reset, D2 (interrupt) or D5)
D2 can either be connected to NRF24L01+ or be used for interrupt pushbutton

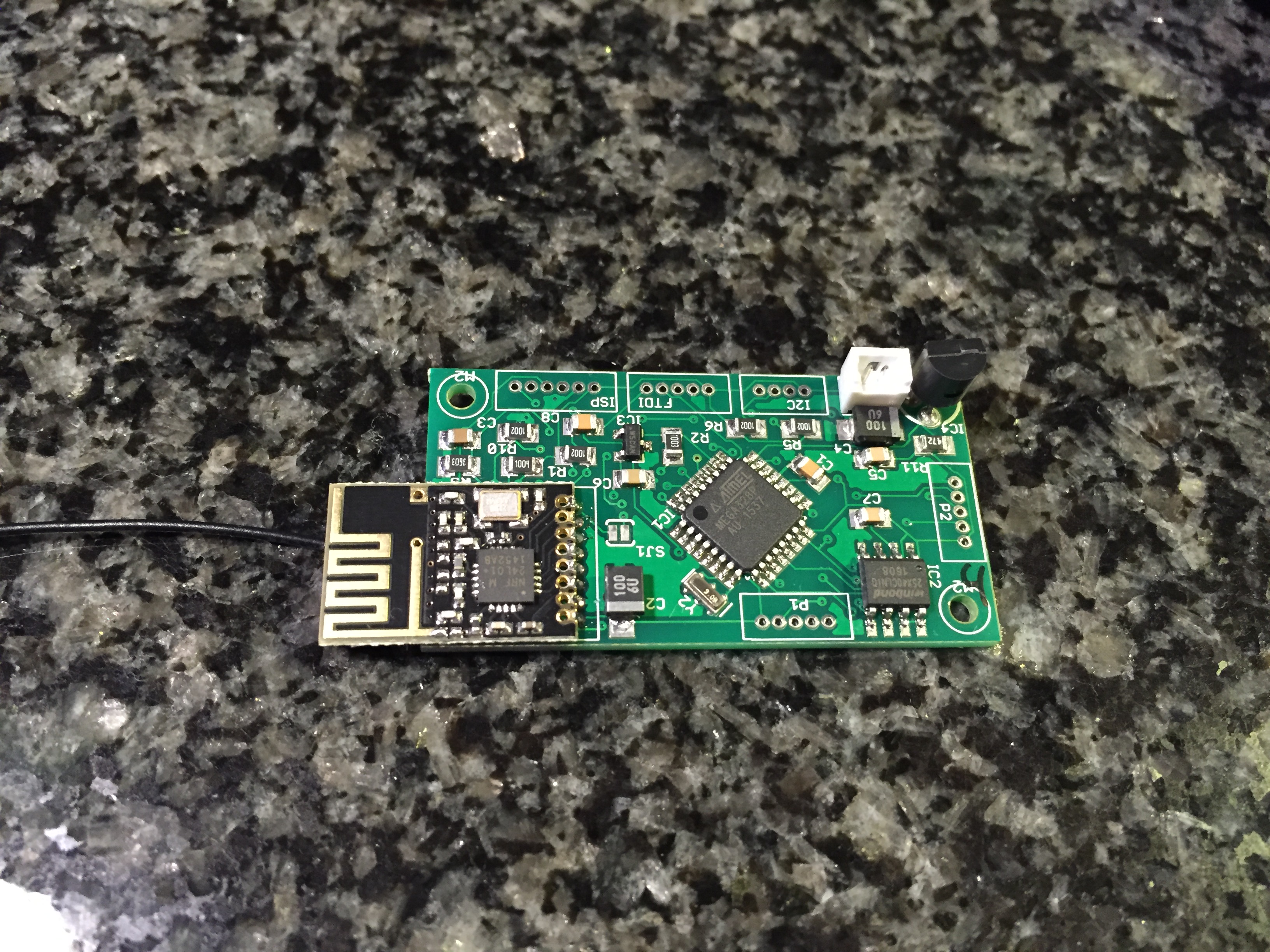

I populated the boards using my home-made reflow oven. The boards work properly, I power them directly from a 16340 Li-Ion cell. I also printed a universal case, but I can't upload the stl file here.
I use the board as a cheap board to monitor the windows and for lux sensing right now.
More will follow soon....
| Part | Value | Device | Package | Description |
|---|---|---|---|---|
| C1 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| C2 | 100uF | CPOL-EUB/3528-21W | B/3528-21W | POLARIZED CAPACITOR, European symbol |
| C3 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| C4 | 100uF | CPOL-EUB/3528-21W | B/3528-21W | POLARIZED CAPACITOR, European symbol |
| C5 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| C6 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| C7 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| C8 | 0.1uF | C-EUC0805 | C0805 | CAPACITOR, European symbol |
| FTDI | 653005114822 | 653005114822 | WR-WTB 1.25mm Male Vertical Shrouded Header,5 Pins=>Code : Con_WTB_1.25_PCB_THT_653005114822 | |
| I2C | 653004114822 | 653004114822 | WR-WTB 1.25mm Male Vertical Shrouded Header, 4 Pins=>Code : Con_WTB_1.25_PCB_THT_653004114822 | |
| IC1 | ATMEGA328P | ATMEGA328P-AU | TQFP32-08 | |
| IC2 | W25X40CLSNIG | W25X40CLSNIG | SO-08 | Serial EEPROM 4K/ 8K , SPI bus |
| IC3 | ATSHA204-TSU | ATSHA204-TSU | SOT23-3 | |
| IC4 | 18B20 | TEMPERATURE-SENSOR | TO-92 | DS18B20 1-wire temperature sensor |
| ISP | 653006114822 | 653006114822 | WR-WTB 1.25mm Male Vertical Shrouded Header,6 Pins=>Code : Con_WTB_1.25_PCB_THT_653006114822 | |
| LED1 | LEDCHIP-LED0805 | CHIP-LED0805 | LED | |
| LED2 | LEDCHIP-LED0805 | CHIP-LED0805 | LED | |
| LED3 | LEDCHIP-LED0805 | CHIP-LED0805 | LED | |
| NRF24 | 653008114822 | 653008114822 | WR-WTB 1.25mm Male Vertical Shrouded Header, 8 Pins=>Code : Con_WTB_1.25_PCB_THT_653008114822 | |
| P1 | 653005114822 | 653005114822 | WR-WTB 1.25mm Male Vertical Shrouded Header,5 Pins=>Code : Con_WTB_1.25_PCB_THT_653005114822 | |
| P2 | 653005114822 | 653005114822 | WR-WTB 1.25mm Male Vertical Shrouded Header,5 Pins=>Code : Con_WTB_1.25_PCB_THT_653005114822 | |
| R1 | 10k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R2 | 100k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R3 | 220 | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R4 | 220 | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R5 | 10k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R6 | 10k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R7 | 220 | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R8 | 1M | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R9 | 360k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R10 | 10k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| R11 | 4,7k | R-EU_M0805 | M0805 | RESISTOR, European symbol |
| S1 | Reset | SWITCH-MOMENTARY-2SMD-ALT01 | TACTILE-SWITCH-SMD-ALT01 | Various NO switches- pushbuttons, reed, etc |
| S2 | SWITCH-MOMENTARY-2SMD | TACTILE-SWITCH-SMD | Various NO switches- pushbuttons, reed, etc | |
| SJ1 | SOLDERJUMPERNO | SJ_2S-NO | Solder Jumper | |
| SJ2 | SOLDERJUMPER_2WAYPASTE1&2&3 | SJ_3_PASTE1&2&3 | Solder Jumper | |
| VCC | 653002114822 | 653002114822 | WR-WTB 1.25mm Male Vertical Shrouded Header, 2 Pins=>Code : Con_WTB_1.25_PCB_THT_653002114822 | |
| Y2 | 8MHZ | RESONATOR8MHZ | RESONATOR-SMD | Resonator |
| Name | Size | # Downloads |
|---|---|---|
| philoduino v1.2.brd | 211.6 kB | 2509 |
| philoduino v1.2.sch | 948.12 kB | 2663 |
| philoduino v1.2.pdf | 21.37 kB | 1427 |
| philoduino v1.2.GBL | 30.52 kB | 2415 |
| philoduino v1.2.GBO | 12.13 kB | 2446 |
| philoduino v1.2.GBS | 1.64 kB | 2430 |
| philoduino v1.2.GML | 95 B | 2325 |
| philoduino v1.2.GTL | 46.64 kB | 2432 |
| philoduino v1.2.GTO | 74.34 kB | 2493 |
| philoduino v1.2.GTP | 5.17 kB | 2306 |
| philoduino v1.2.GTS | 6.33 kB | 2343 |
| Revision | Created | Layers | Dimensions |
|---|---|---|---|
| rev1 | 9 years ago | 2 | 44 × 23 |
